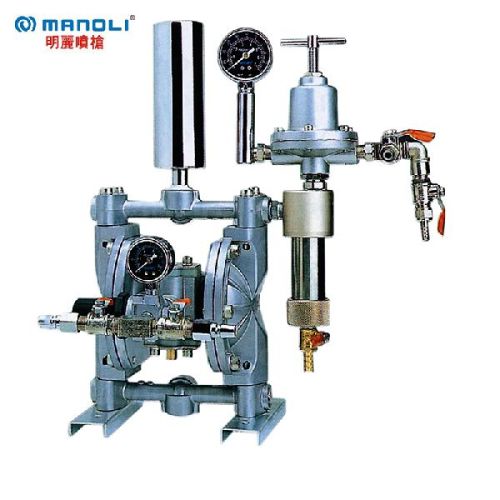

M-38 Pneumatic Double Diaphragm Pump

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

M-38 FR Pneumatic Double Diaphragm Pump with Fluid Pressure Stabilize Supported by an ultramodern packaging unit, we pack our products with premium materials and ensure their longevity. Courtesy our unit, we can provide customized packaging solutions too. The offered lot is in complete compliance with the industry standards thus, high in demand. Our premium quality M-38 Pneumatic Double Diaphragm Pump is availabl ein the weight of 3.9Kg.

View More Details

Send Enquiry

Technical Specifications

Model	Type	Ratio	Fluid nipple size IN	Maximum fluid working pressure MPa (kgf/cm2)	Spraying air pressure MPa (kgf/cm2)	Maximum viscosity available	Fluid pressure stabilizing valve	Fluid filter	Maximum output l/min	Pump material	Diaphragm material	Weight kg
M-38E	Lightweight	1.1	3/8″	0.15 , 0.69 (1.5 - 7)	0.15 , 0.69 (1.5 - 7)	below 60 seconds using NK-2 viscosity cup	------	------	1.6	Aluminum alloy	Teflon	7
M-38R	Fluid pressure stabilization						LFR-405	------	2			8.5
M-38FR	Pressure stabilization and filtration						LFR-405	LFR-405	2			9.2
