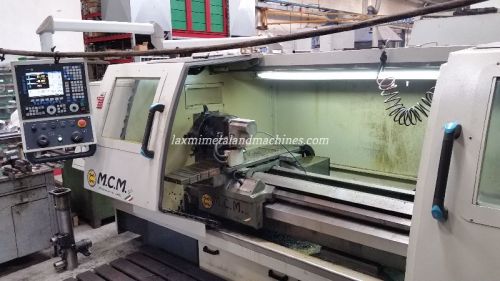

Used MCM CNC Lathe Machine

Listing ID #3496322

25,002 / Piece

Get Latest Price

MOQ 1 Piece(s)
Brand NameM.C.M
TypeCNC LATHE , M.C.M
PriceRs. 25001
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : Anywhere in India

Send Enquiry

Product Details

Details :

Make - M.c.m.

Model - Atl Giotto 280x2200x120

Y.o.m. 2008 Cnc with Autoteaching.

Bidirectional Turret Duplomatic - Bsv - N160.

Control Fagor 8040i8055i - Tc - B.

Height of Centre - 280 Mm.

Swing Over Bed - 560 Mm.

Swing Over Cross-slide - 370 Mm.

Swing Over Gap - 760 Mm.

Distance Between Centre - 2200 Mm.

Width of Bed - 400 Mm. Max

Admitted Weight Without Steadies - 1500 Kg.

Spindle Bore - 102.

Spindle Nose - Cam Lock - 8”.

Spindle Speed - 0-2000 Rpm

Spindle Motorpower - 22 Kw.

Cross Slide Travel - 360 Mm.

X-z Axis Rapid Traverse - Mmin - 12.

Tailstock Sleeve Diameter - 80 Mm.

Tailstock Sleeve Travel - 230 Mm.

Tailstock Sleeve Internal Taper - Morse 5.
