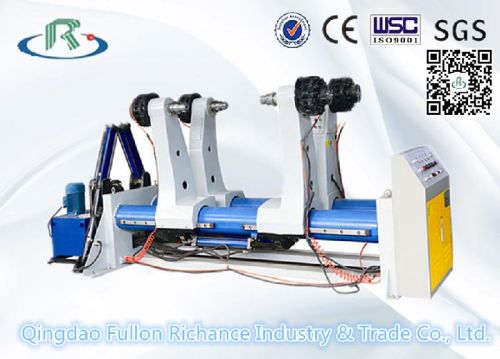

M3 Series Hydraulic Shaftless Mill Roll Stand

M3 Series Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Line
Qingdao RichOcean Industry CO., LTD.
Add:No.3 Kaicheng Road,Huangdao District,Qingdao City,Shandong Province,China
___________________________________________
§ About Us §
___________________________________________
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
__________________________________________
§ Equipment Details §
__________________________________________
1.Transmission pneumatic style to make cardboard clamping and lifting correcting;
2.Mixer can realize non-stop loading and unloading of base paper;
3.Clipping paper with inflation style clamping chuck;
4.Minxer adopts three point brake;
5.Support base paper is 850mm-1500mm,supporting weight(single arm):2T.
6.Model:1400-2500mm.
__________________________________________
§ Equipment Parameters §
__________________________________________
Control type Full Hydraulic
Working width 850-1500mm
One-side load diameter ø350-ø1500mm
One-side load weight 2000KG
Axis diameter ø270mm
Working power requirement 380V 50HZ
