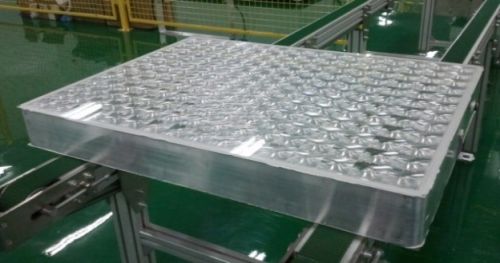

Macsun Solar HCPV Solar Module MS-HCPV120W 830X630X104mm

Macsun solar hcpv, using multi section gallium arsenide compound semiconductor battery chip applied in aviation as the core and adopting fresnel lens as the condenser, realizes an efficient concentration and uniform distributions of the luminous power on the chip through micro-prism; it ensures the accuracy of the solar tracking in different conditions with a high accurate solar tracking system and achieves high reliability, high efficiency, high power generation capacity, low energy consumption during production process, low environmental load for installation, and low electricity cost in large-scale deployment.
The conversion efficiency of the battery chip is over 40%, the static conversion efficiency of the module (cstc) exceeding 32%, the maximum efficiency up to 36%, and the dynamic conversion efficiency (csoc) more than 28%.
Characteristic data of the chip (500 times concentrated):
size of the chip: 2.7x2.7x0.2mm;
isc=0.43a
voc=3.15v
ff=89%
pm=1.2w
characteristic data of the module (850dni, am1.5d):
size of the module: 830x630x104mm
effective lighted area: 0.48m2;
isc=4.5a
voc=37.3v
pm=133w
