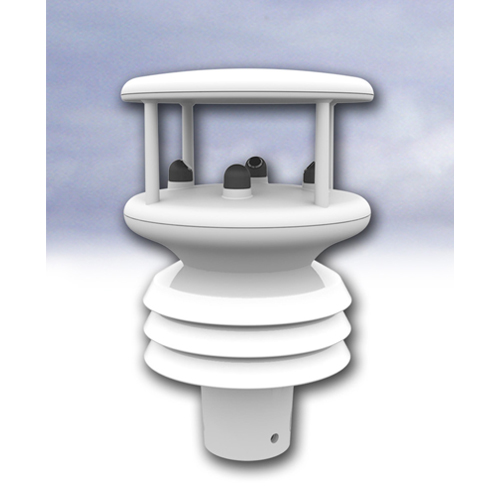

Magellan MX Wind Speed Sensor, Brand Name : Columbia Weather

Innovative weather monitoring
especially ideal for mobile installations, magellan mx weather stations combine the convenience of an all-in-one multi-parameter weather sensor with an internal compass and gps. Four different models offer sensor options including:
• ultrasonic wind speed and direction measurement
• a combined temperature, pressure, humidity instrument mounted inside three double louvered, naturally aspirated radiation shields
• optical rain gauge provides measurements based on the size and number of drops
mx600: rain gauge, ultrasonic wind speed and direction, temperature, relative humid-ity, air pressure, compass, gps
mx500: ultrasonic wind speed and direction, pressure, temperature, relative humidity, compass, gps
mx300: pressure, temperature, relative humidity (no compass or gps)
mx200: ultrasonic wind speed and direction only, compass, gps
magellan mx weather stations feature
• weather-protected sensor unit designed for maximum portability and utility
• gps for compensated wind speed
• automatic self-alignment of wind direction using internal compass
• no mechanical components means virtually no maintenance
• low power consumption – ideal for battery or solar-powered installations
• one-year warranty
sensor specifications
temperature
range: -40 to +70°c (-40 to +185°f)
accuracy: ±0.3°c (20°c); ±0.54°f (68°f)
resolution: 0.1°c (0.18°f)
units: °c, °f
barometric pressure
range: 8.85 – 32.48 inhg (300 - 1100 hpa)
accuracy: ±0.015 inhg (±0.5 hpa) @ 77°f(25°c)
resolution: 0.003 inhg (0.1 hpa)
units available: kpa, hpa, mbar, inhg
wind speed
range: 0-134mph (0-60 ms)
accuracy: ±3% 0.02 mph to 90 mph (±3% 0.01ms to 40 ms), ±5% above 90 mph and up to 134
resolution: 0.02 mph (0.1 ms)
units available: knots, mph, kmhr, ms
