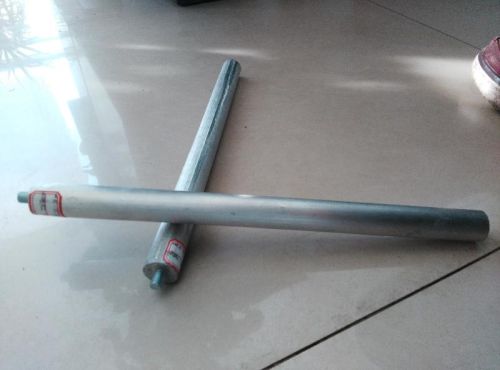

The Magnesium Anode are used in widely for solar water heaters/boiler. The anodes are of a casted extruded diameter and length and come in different sizes
Details
| Casted Code | Diameter mm | Length mm | Screw |
|---|---|---|---|
| 13-115 | 13 | 115 | M4 |
| 14-150 | 14 | 150 | M6 |
| 14-180 | 14 | 180 | M6 |
| 14-215 | 14 | 215 | M6 |
| 14-275 | 14 | 275 | M6 |
| 16-90 | 16 | 90 | M4 |
| 16-155 | 16 | 155 | M6 |
| 16-165 | 16 | 165 | M6 |
| 16-210 | 16 | 210 | M6 |
| 16-250 | 16 | 250 | M6 |
| 16-340 | 16 | 340 | M6 |
| 16-400 | 16 | 400 | M6 |
| 18-100 | 18 | 100 | M4 |
| 18-140 | 18 | 140 | M4 |
| 18-200 | 18 | 200 | M6 |
| 18-300 | 18 | 300 | M6 |
| 18-400 | 18 | 400 | M6 |
| 20-60 | 20 | 60 | M8 |
| 20-130 | 20 | 130 | M6 |
| 20-150 | 20 | 150 | M8 |
| 20-200 | 20 | 200 | M6 |
| 22-150 | 22 | 150 | M8 |
| 22-200 | 22 | 200 | M8 |
| 22-300 | 22 | 300 | M8 |
| 22-400 | 22 | 400 | M8 |
| 22-500 | 22 | 500 | M8 |
| 25-150 | 25 | 150 | M6 |
| 25-180 | 25 | 180 | M8 |
| 26-450 | 26 | 450 | M8 |
| 28-110 | 28 | 110 | M6 |
| 28-150 | 28 | 150 | M6 |
| 32-500 | 32 | 500 | M8 |
| Anode Diameter(mm) | Core Dia(mm) |
|---|---|
| 13.97 | 2 |
| 19.05 | 3.4 |
| 21.34 | 3.4 |
| 26.67 | 3.4 |
| 33.4 | 3.4 |
| 39.65 | 4.8 |
| 51.4 | 4.8 |
| Thread | NPT-ASTM/BSP/G/R |
