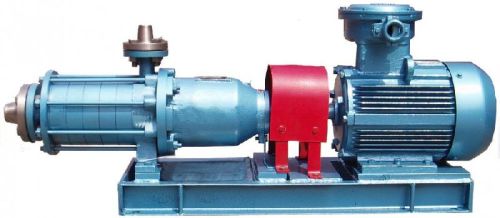

Magnetic Drive Pumps

Magnetic drive pumps which use a coaxial magnetic coupling to transmit torque to an impeller Magnetic drive pumps are sealless centrifugal pumps that use a coaxial magnetic coupling to transmit torque to an impeller. They are energy efficient and can circulate a variety of fluids including acids, caustics, and oils. Magnetic drive pumps (like most sealless pumps) have a higher capital cost than comparable centrifugal pumps, but offer reduced operating costs due to the lack of seal replacement, cleanup, waste, and downtime. They are particularly useful for transporting hazardous or expensive chemicals because there is no mechanical seal, eliminating the possibility of leakage or failure due to an obstruction. Performance range:Size:DN20~DN40              Capacity :0.5~35m3h       Head :~300mTemperature:less than 250℃    Pressure:2.5MPa           Power:~55kWMaterial: cast iron,cast steel,stainless steel,Hastelloy,Ti and Ti alloy and so onDesign feature:1. Single stage single suction,overhang structure2. It adopts medium`s internal circulation to lubricate and cool the magnetic coupling and sliding bearing.3. Low capacity ,high head,absolute no leakageApplication feature:It is suitable for pump with low capacity and high head,horizontal pump Damei Kingmech Pump Co., Ltd. is a professional Chinese pump manufacturer of industrial pumps. Adhering to the principle of providing to customers
