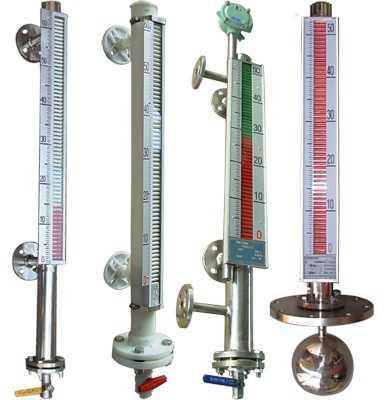

Magnetic Flap Level Meter

We are offering magnetic flap level meter. Top mounting can be applied to special underground buried tanks, vertical tanks and horizontal tanks
the floater is comparatively large without magnet inside. It recommends assisting measurement with carbon steel static well above dn100
top mounting is greatly different from other mounting conditions, so users have to take the overall immeasurable area caused by upper and lower immeasurable areas of floater into account
with respect to the immeasurable area, the lower is about 5000mm and the upper is about 5000mm
feature::
1.high sensitivity,easy to read
2.continuously indicating the level of all kinds of liquid,such as high temperature liquid,high pressure,corrosion,and flammable and combustible liquids
3.easy to read,just see the red line seem as thermometer.
4.wide measuring range without blind spots in the whole process
5.display is apart with the medium,more safety and reliable
application
it is widely used for different industries for all kinds of container,tanks,etc
technical data:
1.measuring range:max6000mm or customized
2.measuring accuracy:≤±10mm
3.medium pressure:-1.0~6.0mpa
4.medium temperature:-40~450°c
5.medium viscosity:≤10-4s
6.medium density:≥0.35gcm3
7.probe material:depends on the density
8.flange:standard dn20 or customized
drain valve:q11f-15pc12" rifled ball valve,air hole:gz12" pipe plug
delivery:
3~7days delivery
warranty:
12months warranty after delivery
oem:we have 10years oem experience
payment:tt,paypal,western union
after-sale-service:
for any question,please feel free to contact with eva :)
