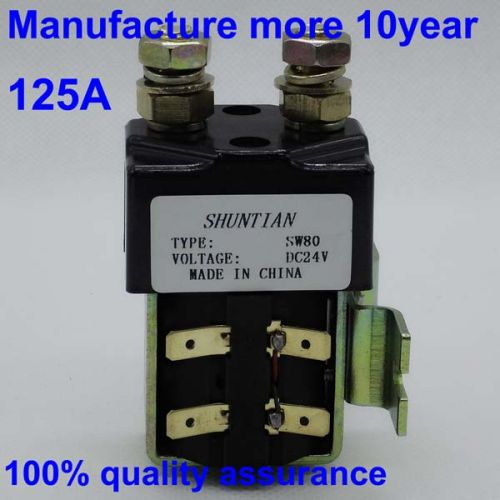

Magnetic Latching Winch Relay, Brand Name : SHT

We offer magnetic latching winch relay .
Appearance
outline lxwxh(mm)
feature
contact ratings
contact form 1h
contact circuit voltage and loading current(resistant)  80vdc max  100a
contact resistance                             30mωmax.
20±5℃ cold state max motion voltage(vdc) pick-up     70%
                                              drop-out    5%～30%
mechanism life(min.) 100,000 ops
electrical life(min.) 50,000 ops
coil ratings
coil rated voltage                                     12～110 vdc
max coil current under the rated voltage          0.1a
with 20±5℃ cold state starting coil max current —
specification
insulation resistance  100mωmin.
Dielectric strength  between contacts 2000vac.
                            between coil and contacts 1500vac.
Environment temperature and attitude       -40℃～+85℃; 0～20000m
max relative humidity                  98%
the shocking of fixed point 1            frequency(11z)   10～200
                                        acceleration(g)   ≤3.5
shocking                            speed(timemin.)   60～100
                                    acceleration(g)   4
constant acceleration          8
operation regulation(continue)
installation direction(random)
layout (bottom view)
