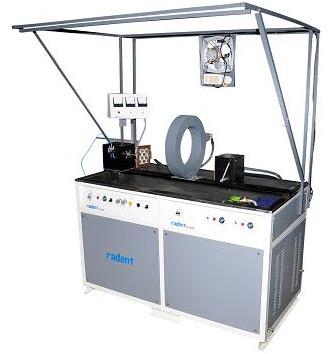

Magnetic Particle Inspection System

Magnetic Particle Inspection System is a multidirectional magnetization unit with capability to magnetize up to 6000 Amps. Magnetic Particle Inspection System offered by us provides alternating current (AC) and full wave DC (HWDC) as test current for effective magnetization and surface and subsurface detection of cracks. Magnetic Particle Inspection System can be used in industries like Forging Shops, Aircraft Overhaul Stations and Heat treatment Plants where high magnetizing currents are required with high level of accuracy. We offer Magnetic Particle Inspection System at competitive prices. Features :

• Contact shot for Circular magnetization & Coil shot for longitudinal magnetization of parts.
• 6000 Amps. AC & 6000 Amps HWDC
• Fabricated Frame (M.S.) with splash guard & wood grill assembly
• Stainless Steel circulation tank of SS–304 Grade Material with Turbulence agitation system, Mono-Block Pump and Hand Nozzle.
• Rugged construction for reliable magnetic inspection. In-built power source with infinitely variable self-regulating current control.
• 5 turn 550-mm. dia base mounted coil.
• Pneumatically operated headstock with foot switch (100 mm stroke length) & rail mounted hand-operated tailstock, both with steady rest for heavy job handling.
• Analog Ammeters with calibration facility.
• Control Panel with push bar assembly
• In-built AC decay Demagnetization facility.
• Black color Inspection hood of resin for Fluorescent wet particle inspection of jobs under ultraviolet lights.
• AC / HWDC changeover by Selector Switch
• Magnetization Time controlled by Logic Control PCB.
• Current assurance indicator with audiovisual facility.
