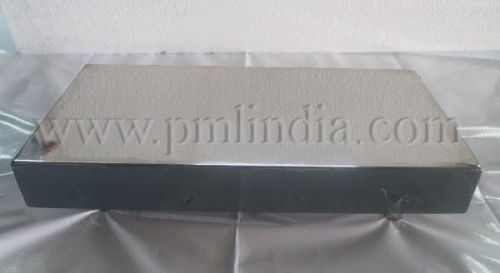

Magnetic Plates

Magnetic Plates are important industrial iron separators that are used for the separation of fine ferrous materials and tramp iron from many types of free flowing and pneumatically conveyed material like corn, sugar, flour, gravel, plastic and others granular materials.

The Plate Magnets also go very well with powdery, moist, lumpy, and abrasive products and large debris that might choke, bridge, or cause rapid wear in cartridge-based separators. Plate magnets are flexible enough to be deployed above conveyors or below conveyor drive pulleys to capture contaminants.They are available in both flat and curved shapes and can be installed either above or at the discharge end of material flow.

Magnetic plates are extensively used in CTC Tea machinery and in Biscuit stacking machines. They are also used for separating trapped iron in industries such as:

• Food (Tea, Spices, Coffee, Cocoa, Milk Powder etc.)
• Chemicals
• Fertilizers
• Pharmaceuticals
• Foundry Sand
• Cattle Feed Materials
• Minerals
• Detergents
• Conveying of light weight tin containers
• Conveying of M.S. sheets using multiple plates

Lighter Strength Plate Magnets offer cost-effective choices for applications with lower product flow rate, lower conveyor speeds, or thinner burden depths. High Strength Magnetic Plates with Strontium Ferrite Magnets / Rare Earth magnets can attract metal particles from thin layers of product conveyed on flat belts from distance of 6”.

• Attract ferrous tramp from flat-belt.
• Powerful Ceramic magnet reaches deep into conveyed material upto 6”.

Threaded holes are provided for easy mounting of these plates with other convenient option.

For Iron Removal, Magnetic Plates are generally located above the material flow attracting the iron particles. The Magnetic Separation Process involves the magnetic field penetrating the product flow and grabbing tramp iron as it passes by the Plate. The concentrated field holds tramp iron tightly to the magnet surface until removed during the cleaning process. For Separating of Ferromagnetic material like Tin/M.S. sheets and containers from conveyor belts, multiple Magnetic Plates at various locations are used. This prevents the falling off of sheets/containers back into the conveyor.
