Magnetic Shutter Switch - Ps911mw-no

₹ 550 - ₹ 560 / piece

MOQ5 Long Ton
MaterialAlloy
Temperature Range20 TO 45C
Operating FrequencyNA
Overall Dimension50mm
Supply TypeManufacturer, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location Anywhere in India

Company Information

4.6/5

Member Since 10 Years
Nature of Business Distributor
GST No. 29AUMPA5873D1ZH

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Physical Vibration,Shock30G FOR 11mSEC
Sensor TypeMAGNETIC
Sensing Distance25MM
MaterialAlloy
Switch TypeMAGNETIC
ShapeRectengular
Country of OriginIndia
max voltage200 VDC
Brand NameHAMILTON
Total Carbohydrate6 MONTH
DesignStandard
Max. Voltage200V DC
Mechanical Life1 Year
Current Rating10W/VA
PhaseSingle Phase
No Of SwitchSINGLE SWITCH
Switch OperationON/OFF
Switch Size1 Module
UsageDOMESTIC & INDUSTRIAL
Packaging TypeBox
SpecialitiesRust Proof
Overall Dimension50mm
Cable Length500MM
Sound Level00
Temperature Range20 TO 45C
AccuracyNA
Current Consumption10W/VA
Operating FrequencyNA
Sensing ObjectMAGNETIC
CapacityNA
Ambient EnvironmentRUGGED
Electrical NoiseNA
Max Current0.5A
Ambient Operating Temperature45C

Product Details:

Operate Gap	50mm min
Shock Resistance	30G for 11mSec.
Vibration Resistance	20G ( 10 to 1000Hz)
Compliance	RoHS
Contact Rating	10W 200 VDC, 0.5 A
Release Gap	80mm max
Cable	2 Core .5sq. mm , 3 ft.long Stainless Steel armoured cable
Contact Rating	10W/VA
Switching Voltage (Max.)	200 V DC
Switching Current (Max.)	0.5 Amp
Contact Resistance (Min.)	150 milli ohms
Life Expectancy	1.0 Million Operations
Insulation Resistance	10 9 ohms

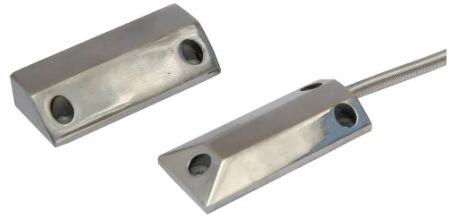

Magnetic Shutter Switch
Features• Heavy Duty Roller Shutter Contact• Sturdy Polished Aluminium Die-cast Housing• Wide Operating Gap 2" min. (50mm)• 3' Long Stainless Steel Armoured Cable
SpecificationsOperate Gap: 50mm min
Release Gap: 80mm maxCable : 2 Core .5sq. mm, 3 ft.long Stainless Steel armoured cable.
