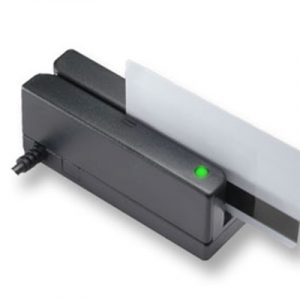

Magstripe Reader

Humidity:Maximum 95% non-condensing.
Operating temperature:32ºF 131ºF(0ºC- 55ºC)
Extended Temp. Option: -30ºF 140ºF(-35ºC- 60ºC)
Storage temperature: -22ºF 158ºF(-30ºC – 70ºC)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Magstripe reader is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the....

View More Details

Send Enquiry

Company Information

ID TECH SOLUTIONS

Sector 37, Gurugram, Haryana

View Number

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The Magstripe reader is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and two-color LED indicator to signal a successful read. The reader is programmable so that the data format output can be programmed & configured to match application and communication requirements.

Description

General Information:
Size: 3.54 x 1.34 x 1.10 inches (L X W X H) 90*27*29mm
Color: black
Swipe speeds from 3 to 60 inches per second
Interfaces: Keyboard, RS232, USB/Keyboard
Fully supports USB 2.0
Small footprint to fit in tight places
Reads up to 3 tracks of information
Bi-directional swipe reading
Superior reading of scratched, and worn cards
Reliable for over 1,000,000 card swipes
Threaded inserts for mounting
Reads ISO7811, AAMVA, & most other card data formats
Configuration software makes configuration changes easy
JPOS & OPOS support for all interfaces is provided
Two-year warranty
Features:
Card type: ISO/IEC 7810 ID-1, ISO/IEC 7811-1,2,6
Card feeding speed: 10 150cm/s
Magnetic head life: 1,000,000 passes minimum
Encrypt : DES / 3DES or AES (can be choose)
Weight:: Approx.80g
Power: +5VDC
