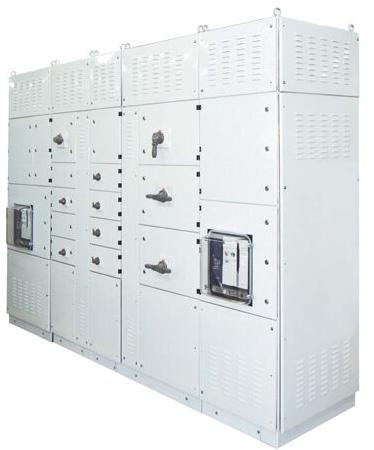

MAIN DISTRIBUTION SWITCHBOARDS

The Main Power Distribution Board range named Modis Ultra, is a fully Type Tested/Design Verified Assembly to the latest BS EN 61439 tested for operation at 500C ambient
It is a Floor Mounting and Free Standing system available in sheet steel cubicles of Forms 2 to 4 with current ratings up to 6300A and fault rating of 50kA for 1 second/3 seconds or 80kA for 1 second and 100kA for 1 second.

• Type Tested / Verified Assembly to the latest standard IEC 61439 and certified by ASTA
• Ratings up to 6300A
• Fault Ratings of 50kA for 1 second / 3 secs, 80kA for 1 second and 100kA for 1 second
• Tested for operation at ambient temperatures of 50°C
• Frames formed from 2.5mm sheet steel, 3.0mm available on request
• Doors & Covers fabricated from 1.6mm sheet steel, 2.0mm available on request
• Form of segregation up to Form 4 Type 6, Type 7 available on request
• Busbars from HDHC Tin Plated Copper
• Standard rating of IP43, IP54 available on request
• Sheet steel epoxy powder coated to light grey semi-gloss as per RAL 7035 with an average 65 microns paint thickness
• Enclosure sections available in widths of 600mm, 800mm & 1000mm, depths of 800mm or 1000mm and a height of 2300mm including an integral plinth
