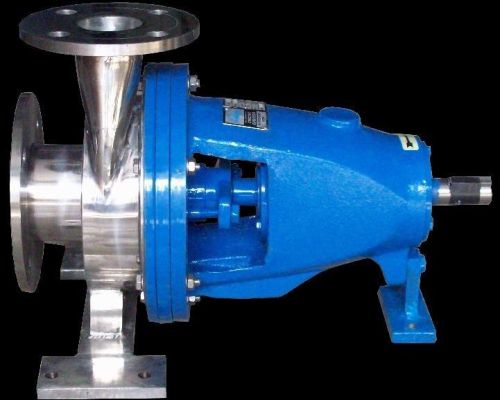

Malhar Chemical Process Pump, For Power Station

We are a chief Manufacturer, Exporter and Importer of the premium quality Chemical Process Pump. We offer a great range of Chemical Process Pump to our clients. Our Chemical Process Pump is known for its durability, high performance and strength. Our Chemical Process Pump are available at really competitive prices.
Features :

• More than 3mm corrosion allowance (cast iron) for extended use on corrosive applications
• Chemical Process Pump construction allows rotating assembly to be with drawn without disturbing the suction and delivery connections
• One piece self vanted foot mounted, center suction volute casting, single stage, closed / semi open dynamically balanced impeller
• Flange drilling standards as per DIN 24255 / ISO 2858 or as per customer's requirement
• Designed for 16 bar working pressure with optional casing for a working pressure of up to 20 bars
• A robust and solid construction that guarantees long life even under high suction pressure conditions
• Heavy-duty, deep-grooved bearings with minimum 50,000 hours operating life under normal condition. (Grease lubricated, oil lubrication available on request)
• Heavy-duty, stiff solid shaft design with low L3/D4 ratio ensures less than 0.05mm shaft deflection at the seal face in all operating condition. This extends the seal life
• Seal housing is constructed to accommodate different seal/gland designs, so as to meet the severe heavy-duty requirements. ( standard is gland packing , seal version on special request)
• Excellent parts interchangeability reduces inventory levels for spare parts to a minimum
• Special design for high temperature thermic fluid available in request
• Motor or engine driven sets
• Special monoblock versions available on request

Applications :

• For pumping clear/turbid water/chemicals & volatile liquids
• Air conditional plants
• Power station
• Mine drainage
• Sprinkler systems fire fighting
• Booster service
• Oils
• Brine
