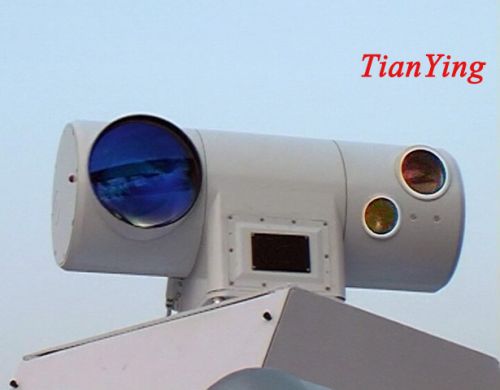

Man 5km Tank 10km Ship 20km LRF TV IR Auto Tracking Electro Optics System

China TianYing TY-P1 electro-optics system is specially designed for precise alignment, clear surveillance tracking, and effective accuracy measurement. the system is including coaxial wide spectral band CCTV camera, coaxial long focus uncooled thermal imaging, high rate mid-long range eye safe laser rangefinder, high accurate mid-speed turret and auto tracking function.

With its combination of a large field of view for wide-area observation and detection, and a small field of view for identification, it fulfills the highest requirements for the seamless surveillance of land and maritime borders and is equally suited for the protection of critical infrastructure. The system features line of sight of coaxial cameras and turret is bore-sighted with laser rangefinder, then up to effective accurate measurement. The TY-P1 can be operated as a stand-alone or integrated into existing legacy operating systems. The camera is suited for use in stationary solutions - for example mounted on masts, tripods, vehicle or building structures - as well as mobile applications.

TY-P1 measuring tracking surveillance EO/IR thermal camera system features: 1) Effective accurate measurement due to precise alignment target of coaxial camera with LRF and turret. 2) HD coaxial zoom wide wavelength quick auto day sight TV camera. 3) Mid-range SD coaxial zoom infrared thermal imaging sight camera(option cooled and uncooled). 4) High accuracy high rate 20km eye safe laser rangefinder(drone 4.2km have been proven). 5) Auto tracker function with analog video, option digital video. 6) Compact ruggedized design with hermetically sealed house and suited vehicle mount (weight

TY-P1 Tracking Surveillance EO/IR Thermal Camera System Specifications:

Model
TY-P1
Thermal Camera
Detector
Uncooled Vanadium Oxide
Pixel
640x512
Spectral band
8μm~14μm
Pixel
17mm x 17mm
Focal length - Option 1
100/330mm (N:1.9°, W: 6.2° for FOV horizontal)
Focal length - Option 2
75mm to 330mm continuous zoom (1.9° to 8.3° for FOV horizontal)
Focal
Manual, Automatic
Alignment
Coaxial zoom
Detection human range
Approx 5 km
Recognition human range
Approx 3 km
Option cooled thermal camera
30mm to 300mm continuous zoom (1.8° to 18.3° for FOV horizontal)
Day Light Camera
Detector
1/1.8" CMOS
Focal length
30x optical continuous zoom lens.
Resolution
1920×1080
Wavelength
400nm ~ 1100nm
Alignment
Coaxial zoom
Detection range
Approx 6km for human, Approx 10km for 6m x 3m vehicle/boat
Recognize range
Approx 4km for human, Approx 8km for 6m x 3m vehicle/boat
Laser Range Finder- Option
Wavelength
1.57μm
Beam divergence
≤  0.5 mrad.
Ranging
10km for 30% reflection 5m² target in visibility 25km
Measuring rate
2Hz continuous 25 seconds
Measurement accuracy
+/-1m
Safety class
Class 1
Servo
Accuracy
≤ 0.06°
Direction range
azimuth:360° continuous; elevation:+45°~-45°
Directing speed range for azimuth
0.05°/s to 45°/s
Directing speed range for elevation
0.05°/s to 45°/s
Parking Position
Yes
Programmable Search
Program multiple preset scene locations
Communication protocol
Pelco-D
Environmental
Operating temperature range
-32ºC ~ +60ºC
Storage temperature range
-40ºC ~ +70ºC
Protection level
IP66
Power
Power Supply
DC 24V
Power consumption
≤ 80W (average for typical operation profile)
System Features and Physical
Auto tracking
Yes
Boresighting
line of sight of cameras is boresighted with laser rangefinder
Size
appr. 800 mm x 650 mm x  450 mm
Weight
appr. 56kg
Note
1, Technical information is subject to change without notice.  2, Depending on the region of sale.
