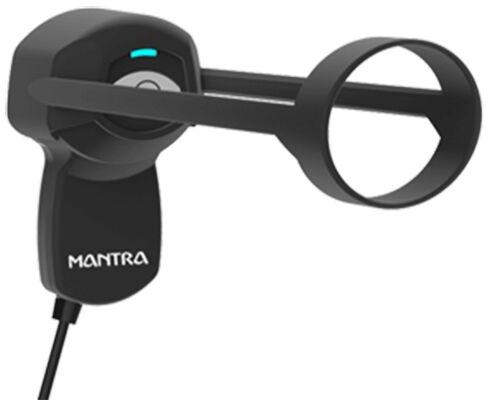

Mantra MIS100V2 Single IRIS Scanner

₹ 3,000 / Piece

MOQ2 Piece
Brand NameMantra
Health SafetyRoHS Compliant
Capture Time< 2 Sec
Safety Exempt GroupPer IEC 62471:2006-07
Supply TypeExporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

5.0/5

View Number

Member Since 9 Years
Nature of Business Trader
GST No. 19AAFCD7956C1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameMantra
Imaging Wavelength700-900 nm
Image Margins Left & right>=0.6x iris radius
Health SafetyRoHS Compliant
Radiated EmissionFCC part15B/IEC:CISPR 22 CLASS B standard
Operating SystemSupport Windows XP, Win7, Win2008, Android, Linux, Embedded Linux
Radiated ImmunityAs per IEC/EN 61000-4 3:2006+A2:2010
Capture Time< 2 Sec
Capture ModeAuto Capture with Built-in Quality Check
Spatial Resolution50% 1.0 LP/mm
ESD AirDischarge+-8 KV, contact type+-4Kv
Pixel Resolution> 10 pixels/mm
ConnectivityUSB 2.0 / USB 1.1
Pixel Depth8 bits/pixel
Safety Exempt GroupPer IEC 62471:2006-07
Output ImageKIND1 to KIND7 with JPEG2000 compression
Top & Bottom>=0.2x iris radius

Mantra MIS100V2 IRIS Scanner can be utilized widely for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can efficiently identify poor IRIS images that can be adjusted smoothly based on inbuilt LED indications. Our STQC certified iris sensor is comprised of high Resolution CMOS Sensor that creates quality ISO/IEC 19794-6 Images with JPEG2000 compression. MIS100V2 proprietary distance sensing and focus analysis technology gives fast auto capture capabilities.

Features :
