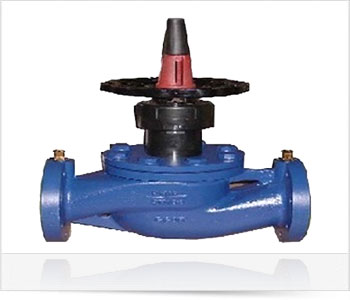

Manual Balancing Valve

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

General: The Balancing Valves is designed for double regulating, control and shut off valve with built-in pressure drop measuring facility.We have a wide range from 15mm to 300mm. It is....

View More Details

Send Enquiry

Company Information

Triton Process Automation Pvt. Ltd.

Ghatkopar, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

General:

The Balancing Valves is designed for double regulating, control and shut off valve with built-in pressure drop measuring facility.
We have a wide range from 15mm to 300mm. It is divided in two parts, 15mm to 40mm and 50mm to 300mm as below, For 15mm to 40mm,

Application:

The hydronic balance is a significant requirement for the efficient operation of a hydronic heating or cooling installation. In an unbalanced system under or over

provision of hot water to individual radiators or circuits can occur. Apart from the correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as in DIN 18 380, VOB part C, required by national standards.
The Valve is a variable orifice double-regulating balancing valve for the return with additional functions shutoff, draining and filling.
It can be upgraded to an automatic balancing valve - even after the system has been taken into commission and under system pressure.

Features:

	Quick and easy measuring with SafeConTM measuring connections
	Dimensions DN15 to DN40 can be retrofitted with a Kombi-Diaphragm Unit
	High accuracy of pre-setting because of individual adjustment
	Robust valve body made of corrosion resistant red bronze
	Available in sizes up to DN80
	Visible pre-setting dial with concealed pre-setting wheel
	Maintenance free spindle with double O-ring sealing’s
	PTFE-seat sealing

Specifications:

	Sizes DN50…DN300
	Nominal pressure PN16
	Medium Temperature -10 ~ +110 Maximum
	Body Material IS:210, FG 220 CI
	Stem Material ASTM A276,GR SS 410
	Disc Material Stainless steel Disc
	Hand Wheel Cast Iron
	Leakage Rate No visible leakage
	Medium Type Water
	Flange standard IS1538
	Shell Test pressure 24bar
	Seal Test pressure 17bar
