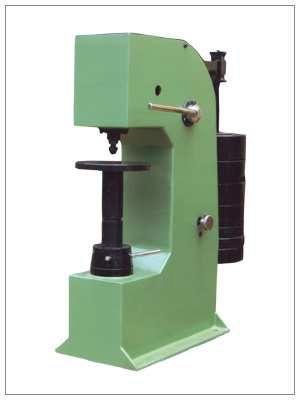

Manual Brinell Hardness Tester

₹ 96,000 / Piece

Initial Load (kgf)NIL
Depth of Throat150mm
Loads (kgf)250 to 3000 in stages of 250
Max. Depth of Elevating Screw Below Base(approx.)Nil
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

Member Since 15 Years
Nature of Business Retailer
GST No. 27BERPK2695M1ZL
Company Video

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Depth of Throat150mm
Loads (kgf)250 to 3000 in stages of 250
Initial Load (kgf)NIL
Max. Test Height254mm
Net Weight (approx.)250 Kgs
Machine Height (approx.)860mm
Max. Depth of Elevating Screw Below Base(approx.)Nil

Machine designed with a hydraulic power pack and control circuit for effortless loading unloading operation. A dial gauge in front measure depth of ball penetration. This facilities production testing within tolerance limits by compression method.

Basic machine design & operation similar to B 3000 (H). in addition, ‘Optical Device’ with 14 x magnification provided in front of project dia of ball impression on glass screen with a micrometer measuring system with 0.01mm accuracy. The indenter swivels & projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression.

Standard Specification

Model	No. of Pieces
Testing table 200 mm dia	1 pc
Testing table 70 mm dia with‘V’ groove for round jobs 10 to 80 mm dia.	1 pc
Ball holder 5 mm	1 pc
Ball holder 10 mm	1 pc
Test Block HB 5/750	Nil
Test Block HB 10/01/00	1 pc
Brinell Microscope	1 pc
Allen Spanner	4 pcs
Telescopic cover for elevating screw protection	Nil
Instruction manual	1 Book
