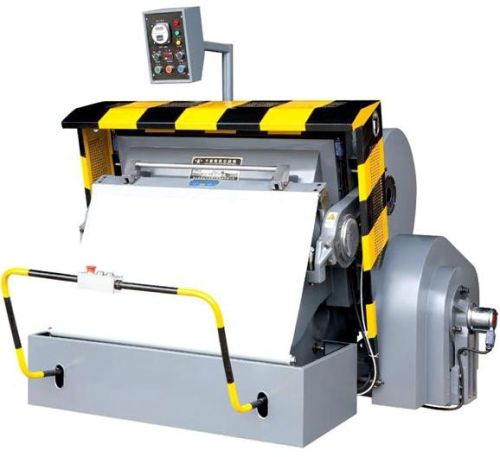

Manual Die Cutting Machine & Creasing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The company is chiefly engaged in exporting, and supplying of manual die cutting machine and creasing machine all across the globe. The manual die cutting and creasing machine, offered by us, is known for its excellent efficiency and longer working life. The manual die cutting and creasing machine is procured from the renowned international sources only. acclaimed for lower maintenanceefficiencylonger working lifenew technology

View More Details

Send Enquiry

Product Details

Specifications

Model	Inner Chase Size	Speed	Max. rule Length	Motor Power	Machine Weight	Overall Dimensions mm
PYQ401C	750x520mm	25	15m	2.2kw	1700kg	2300x1500x1500
PYQ203C	930x670mm	23±3	25m	4kw	3000kg	2350x1900x1800
ML1100	1100x800mm	20±2	30m	5.5kw	4200kg	2450x2100x1900
ML1200	1200x820mm	20±2	32m	5.5kw	4500kg	2500x2100x1900
ML1300	1300x920mm	15±2	40m	7.5kw	6000kg	2550x2100x1950
ML1400	1400x1000mm	15±2	45m	7.5kw	6200kg	2650x2100x2000
ML1500	1500x1050mm	14±2	45m	7.5kw	6800kg	2700x2100x2150
ML1500 A	1500x1150mm	14±2	45m	7.5kw	7000kg	2700x2100x2200
ML1600	1600x1250mm	13±2	50m	11kw	11500kg	2800x2250x2300
ML1800	1800x1300mm	13±2	60m	15kw	13000kg	3000x2250x2350
ML2000	2000x1400mm	12±2	65m	15kw	15500kg	3100x2330x2600
