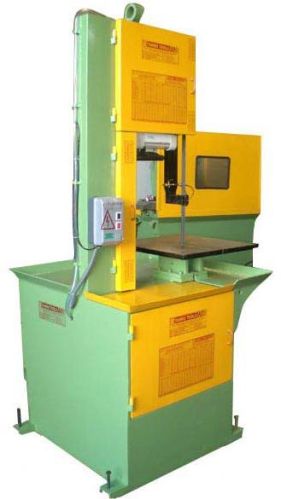

Manual Feeder Vertical Bandsaw Machine (VCM-250)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We have carved a niche in manufacturing, exporting and supplying the best quality Manual Feeder Vertical Bandsaw Machine (VCM-250). With assured durability and precise cutting, our Manual Feeder....

View More Details

Send Enquiry

Product Details

We have carved a niche in manufacturing, exporting and supplying the best quality Manual Feeder Vertical Bandsaw Machine (VCM-250). With assured durability and precise cutting, our Manual Feeder Vertical Bandsaw Machine is designed in standard workstation height for easy and better operation. The Manual Feeder Vertical Bandsaw Machine is equipped with energy efficient motor that consumes less power of current 2.2 kWh level.
Features

High Efficiency Gear Box
Adjustable Heavy Duty Movable Blade Guide
Well Equipped Electrical Control Panel
Auto Coolant flow system
Chip brushing of Blade and chip filtering system
More energy efficient
Fully closed Machine with small sheet shield (above on cutting area) for more safety
Top mount Tube Light for proper lighting at workspace
Stepped C.I. wheel for blade rotation to avoid damaging of teeth
Well located Starter to easy operate

Technical Specifications

Machine Dimension
Length	1250 MM
Width	700 MM
Height	2000 MM
Machine Electrical Equipment
Supply Voltage	~3 x 415V, 50Hz, TN-C-S
Protection Degree	IP 54
Driving Engine of the Band Saw & Coolant
Type	~3 x 415V, 50Hz
Out Put (Drive)	2 HP
Out Put (Coolant)	0.18 HP
Saw Band Dimension
3760(Length) MM X 27(Width) MM X 0.9(Thickness) MM
Work Station Dimension
Length x Width	500MM x 500MM
Height from floor	935 MM
