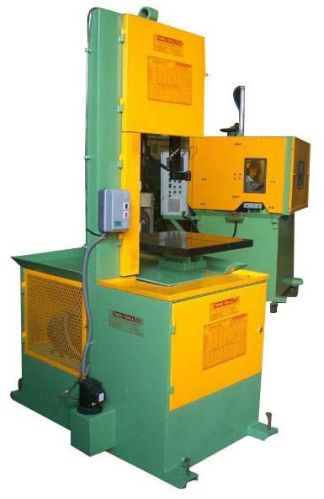

Manual Feeder Vertical Bandsaw Machine (VCM-350)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering Manual Feeder Vertical Bandsaw Machine (VCM-350). Our Manual Feeder Vertical Bandsaw Machine is a fully closed machine with a small sheet shield for optimum safety. The Manual Feeder....

View More Details

Send Enquiry

Product Details

We are offering Manual Feeder Vertical Bandsaw Machine (VCM-350). Our Manual Feeder Vertical Bandsaw Machine is a fully closed machine with a small sheet shield for optimum safety. The Manual Feeder Vertical Bandsaw Machine is well-equipped with energy efficient motor that consumes less power with current 2.2 kWh level. Our Manual Feeder Vertical Bandsaw Machine is designed with auto coolant flow system and adjustable heavy duty movable blade guide. In addition to this, it features chip brushing of blade and chip filtering system.
Features

High Efficiency Gear Box.
Well Equipped Electrical Control Panel.
Fully closed Machine
Top mount Tube Light for proper lighting at workspace.
Stepped C.I. wheel for blade rotation to avoid damaging of teeth.
Well located Starter to easy operate.
Standard work station height for easy and better operation.

Technical Specifications

Machine Dimension
Length	1250 MM
Width	900 MM
Height	2230 MM
Machine Electrical Equipment
Supply Voltage	~3 x 415V, 50Hz, TN-C-S
Protection Degree	IP 54
Driving Engine of the Band Saw & Coolant
Type	~3 x 415V, 50Hz
Out Put (Drive)	2 HP
Out Put (Coolant)	0.18 HP
Saw Band Dimension
4100(Length) MM X 27/34(Width) MM X 0.9(Thickness) MM
Work Station Dimension
Length x Width	550MM x 550MM
Height from floor	935 MM
