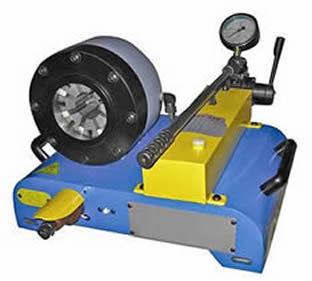

Manual Hose Crimping Machine

We are offering manual hose crimping machine. Also named hand operated hose crimping machine and hand driven hose crimping machine, this kind of hose crimping machine has the same light advantage with mini automatic hydraulic hose crimping machine. Because of this feature it can be carried to the job sites. Not only can it be used in plain areas but also can be used in rugged terrain. In addition the equipment is the ideal device for areas where electric power is not available or cannot be used for safety reasons. There are three kinds of manual hose crimping machines produced by us, namely 3 inch hose crimping machine and two types of 1-14 inch hose crimping machines.
manual hose crimping machine features and benefits:
nice appearance, concise and stylish
easy operation, lightweight and convenient to carry
working for outdoors due to the power source of extra high pressure manual pump
3 inch manual hose crimping machine
lightweight and stylish 3 inch manual hose crimping machine
technical specifications:
crimping range 18 inch to 3 inch
precision 0.01mm
max opening 172mm
pressing force 6360kn
die set 3 sets included
weight 53kg
dimension 400×450×500mm
systematic pressure 35mpa
14 inch to 1-14 inch manual hose crimping hose
manual hose crimping machine used for crimping 14 to 1-14 inch hoses
crimping range 14 inch to 1-14 inch
pressing force 470kn
die set 8 sets included
weight 100kg
dimension 600×350×460mm
18 inch to 1-14 inch manual hose crimping hose
manual hose crimping machine used for crimping 18 to 1-14 inch hoses
technical parameters:
crimping range 18 inch to 1-14 inch
precision 0.01mm
max opening 100mm
pressing force 1370kn
die set 12 sets included
weight 70kg
dimension 550×620×395mm
systematic pressure 30mpa
