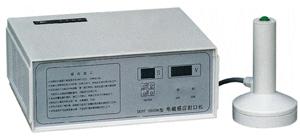

Manual Induction Sealing Machine

The new Hand Held Induction Sealer offers an unprecedented combination of sealing capability, portability, and production flexibility from an incredibly small footprint. The unit's compact design and high level performance is a direct result of forward-thinking electronic architecture which features proprietary advanced circuitry. This induction sealer is ideal for laboratory applications, manual or hand held production, off-line testing; and startup operations with aspirations of increased productivity.

The induction sealing machine enable to non-metallic bottles with aluminum foil in moving under the electromagnetic induction device which will produce instant high heat to melt aluminum foil and make it adhesive to bung hole, and then bottles are sealed. It is widely used as packaging machine in pharmaceuticals, pesticide, lubricant and cosmetics industries line. Working Environment: The machine should be used in an excellent environment. It is fit for small and discontinuous sealing work. Excessive temperature and relative humidity have bad effect on the working life, even damage the machine directly.

• For use on Plastic and/or Glass containers with Flat Threaded Caps
• Hand-held Operation
• Extremely Simple to Use
• Easily Relocated to where its needed Packaging Area
• Optimal use for small to medium productions or as backup to larger continuous systems
• Speed: Aprox 20 - 40 cpm (Depending on Operator Speed and Container Characteristics)
• Maximum Cap Diameter (60 - 130 mm)
• Maximum distance between the cap surface and the top of container (3 mm)
• Horn Power: 600 Watts
• Cycle Actuation: Thumb Switch
• Control Panel:
• Master ON/OFF Switch
• Fuse Protection
• Current Electrical Charge Digital Display
• Sealing Time Digital Display (Seconds & Tens of Sec)
• Automatic Overheat Protection Fuse and Alarm./Light with Automatic Cool down Reset Feature
• Automatic Over Current Alarm/Light  Engages if Excessive Distance Between Horn and Substrate is Being Applied

• Master ON/OFF Switch Sealing Time Digital Display (Seconds & Tens of Sec)
• Fuse Protection Current Electrical Charge Digital Display
• Automatic Overheat Protection Fuse and Alarm./Light with Automatic Cool down Reset Feature
• Automatic Over Current Alarm/Light a Engages if Excessive Distance Between Horn and Substrate is Being Applied

• Electrical: 220V/50-60Hz
• Machine Weight: (5 Kg)
• Control Unit Size: (340 x 290 x 150 mm H)
• Packaged Dimensions: 21 inches (533mm0 x 19 inches (483mm) x 10 inches (254mm)
• Packaged Weight: 15 Lbs (7 kg)

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
