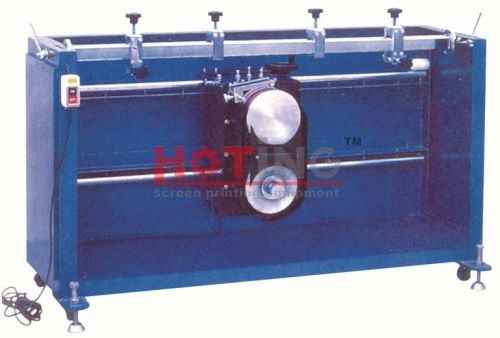

Manual Squeegee Grinding Machine, Brand Name : Hoting

Application scope:
Parallel squeegee repair and fine grinding
Specification:
(1) The machine with powder coating, adopts emery cloth belt, high quality electrical components
(2) Adopt linear guide to make sure flatness
(3) Squeegee fixed with the frictioning take card lock design, can adjust the rubber deformation to ensure that the grinding quality, emery wheel is used for the grinding wheel, can offer high precision grinding, long service life
(4) Can be used for mechanical blades and manual type blade grinding
(5) Special made grinding wheel, abrasive cloth belt no stress and squeegee deformation, no corrugated shape, ensure the grinding precision
(6) Grinding angle match the performance of various kinds of special printing
(7) Easy to operate,even without professional technical operations
Parameter:
Model
SSM-1200
SSM-1500
SSM-2500
Maximum grinding length
1200mm
1500mm
2500mm
Grinding type
Abrasive belt
Grinding angle
0° ~ 45°(Option)
Weight
Approx. 120kg
Approx. 150kg
Approx. 300kg
Dimension(W X D X H)
1430×450×850 mm
1730×450×850 mm
2800×450×850 mm
★ Customized squeegee grinding length is available.
