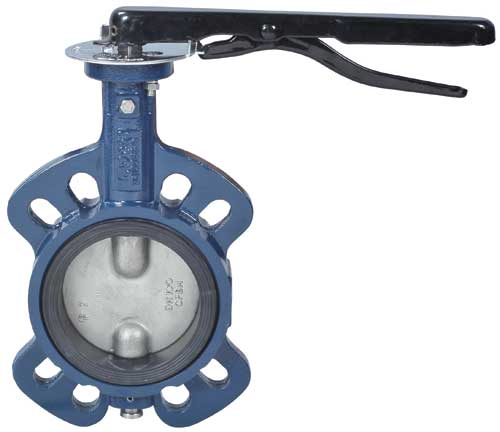

Manual Wafer Type Butterfly Valve

Manual Wafer Type Butterfly Valve

Listing ID #389075

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Avail reliable range of manual wafer type butterfly valve that is light in weight and can be easily installed. our manual wafer type butterfly valve is fabricated from quality raw material ensuring....
View More Details
Send Enquiry

Company Information

Rotex Automation Limited verified-icon
Makarpura, Vadodara, Gujarat
View Number
  • Member Since 14 Years
  • Nature of Business Retailer
  • GST No. 24AABCR0011J1Z0

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Avail reliable range of manual wafer type butterfly valve that is light in weight and can be easily installed. our manual wafer type butterfly valve is fabricated from quality raw material ensuring durability, strength, high performance and resistance to corrosion. The manual wafer type butterfly valve offered by us, is widely demanded by food industry. why our manual wafer type butterfly valve?

  • durable
  • dimensionally accurate
  • high tensile strength
  • high quality
  • resistance to corrosion
  • easy to operate
  • sturdy construction
  • economical rates
technical features
  • simple and rugged design
  • replaceable parts - all parts are replaceable at site – including seal
  • blow out proof stem
  • burnished stem for smooth working
  • low operating torque – german synthetic material bush used
  • body - phosphated and epoxy painted
  • seal - molded / vulcanized in metallic ring and replaceable
  • long seal life - smooth spherical disc for proper contact with seal
  • easily removable hand lever with an option of lock system
  • suitable for vacuum applications
  • 100% factory tested under water / air
  • high cv value
  • iso: 5211 namur standard mounting pad, for direct mounting rotary / electrical actuator
  • flange gaskets not required
  • maxflow butterfly valve series titli can be used for downstream connection or end line connection
  • maxflow butterfly valve series titli is adaptable to any flange like en, asme, jis, bs flange mounting. One valve to any type flanges, so it will reduces the inventory


Dimensions In Mm

TypeDN 350 14"DN 400 16"DN 450 18"DN 500 20"DN 600 24"
A6447007598301000
B288320348380454
C356380411450546
D175175175175210
E2323232325
G55557
HF14F14F14F14F16
I-----
JØ45Ø45Ø45Ø45Ø70
K1414141420
L6565656580
M78102114127154
N440490540600705
O124145165185225
P314.5359411470566
Q PN 10460*515*565*620*725*
Q PN 16470*525*585*650*770*
Q ANSI 150476.25*539.8*577.9*635*749.3*
Q 10K445*510*565*620*730*
Q 16K480*540*605*660*770*
R PN10M20X16M24X16M24X20M24X20M27X20
R PN16M24X16M27X16M27X20M30X20M33X20
R ANSI 150M26X12M27X16M30X16M30X20M33X20
R 10KM22X16M24X16M24X20M24X20M30X24
R 16KM30X16M30X16M30X20M30X20M36X24
Note
  • * Down Stream is not Possible
  • Specifications are subject to change without notice

Specifications

Size
Flanges
EN/ DIN 1092
ANSI
JIS
BS-10
PN6PN10PN16150Ib5K10K16KTable-ETable-FTable-H
DN50 (2")√√√√NA√√√√√
DN65 (2 1/2")√√√√√√√√√√
DN80 (3")√√√√√√√√√√
DN100 (4")√√√√√√√√√√
DN125 (5")√√√√√√√√NANA
DN150 (6")NA√√√NA√NA√√√
DN200 (8")NA√√√NANA√√NANA
DN250 (10")NA√√√NA√√√√√
DN300 (12")NA√√√NA√NA√NANA
DN350 (14")NA√√√NA√√√NANA
DN400 (16")NA√√√NA√√√NANA
DN450 (18")NA√√√NA√√√NANA
DN500 (20")NA√√√NA√√√NANA
DN600 (24")NA√√√NA√√√NANA
Note :
  • √ : Flange Connection Available
  • NA : Flange Connection Not Available

Company Details close-icon

Maxflow Valves is a professionally organized enterprise engages as the prime Manufacturer, Exporter & Supplier of Butterfly Valves. “TITLI’ series is the brand of our Butterfly Valves which requires no introduction in the market. Maxflow Valves has ISO 9001:2008 accreditation for its Quality Management Systems. Our wide product range comprises of Automated Butterfly Valve, Manual Butterfly Valve, Manual Lug Type Butterfly Valve, Manual Wafer Type Butterfly Valve, Automated Ball Valve and Manual Ball Valve. We are offering Butterfly valve in standard range from DN40 to DN600 (Other sizes on request) in CI/WCB Body, CF8M/CF8/SGI Disc, EPDM/NBR/Viton Replaceable Seal.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees 20 - 50
  • Year of Establishment 2008
