Manufacture Five Sides UV Curing Machine, Certification : CE

₹ 8.24 Lakh / 9300 9300 Set

MOQ1 Set(s)
CertificationCE
ConditionNEW
Country of OriginChina
Model NumberTGW(600mm-1300mm)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Senlian Automatic Coating Machinery Company Limited

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1997

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CertificationCE
ConditionNEW
Country of OriginChina
Brand NameSENLIAN
After-sales Service ProvidedOverseas installation and commissioning of Engineers
Model NumberTGW(600mm-1300mm)

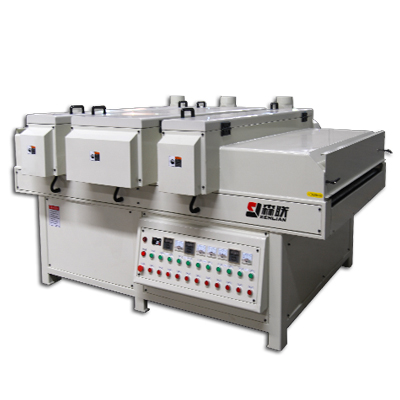

Five sides UV curing machine
Function: It applies the strong UV light to react with UV paint and curing in 3 to 5 seconds immediately, this light Reaction greatly save the drying time and the storage space without any harmful Substance volatilize.
this structure equipped with two horizontal UV lamps on Top, which the irradiation angle can be adjusted, and two vertical UV lamps beside, which the width can be adjusted from 600mm to 1300mm, and the Irradiation angle still adjustable, to ensure curing five sides of board.
â�¢Application filed:
Furniture, door, Wardrobe, cupboard, decoration, etc.
â�¢Application board:
Solid wood board, Ply, MDF, mfc, pb, marble, etc.
â�¢Application paint:
Mercury lamp for Clear UV, gallium lamp for color UV.
TECHNICAL PARAMETERS
Optional working width 600mm-1300mm
MAX working thickness 100mm
MIN working length 150mm
Working speed 0-25mmin
Full power(mercury lamp) 34.8kw 380V
Estimated weight 1750kg
Overall dimensions 2600*2400*1450mm
MAIN PARTS
Electric motor UNIS
Frequency Converter Shihlin
Conveyor Stainless steel rollers
Voltage transformer Copper wire and magnetic flux leakage
Electrical appliance Chint
Optional lamp for different UV paint UV mercury lamp, UV gallium lamp, UV iron gallium lamp
