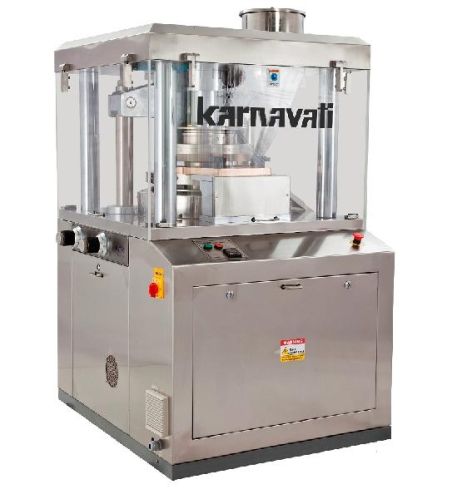

Chlorine Tablet Compression Machine, For Chemical, Salt, Food, Ayurvedic, Neutraceutical, Ceramic

Rsp - single rotary tablet press
the single rotary gmp model press is ideally suited for small and medium batch production.

Rsp single rotary press has a totally paint free production zone. Having considered the importance of gmp; production zone is constructed completely of stainless steel or plated. This avoids any corrosion due to oxidation and ensures easy clean ability. Turret is made of a special grade of casting with two piece design of high tensile strength to ensure maximum life and less wear and tear.

The electric control panel is provided with �on�, �off� push buttons, emergency �off� button and miniature circuit breaker as a safety feature.
Salient features:
� elnp turret and upper cam tracks
� manual lubrication
� gravity feeding
� main motor drive through interchangeable fixed step pulley
� manual operation through push buttons

� heavy duty construction with square tubular design
� available in sp tooling
� produces round tablets up to diameter 60mm and square tablet size up to 40 x 40 mm
� herculean hydraulic compression of 16 tons
� turret with external helical toothed for pinion drive
� external tablet parameter control knobs (viz. Depth of fill and tablet thickness)
� sg iron turret
