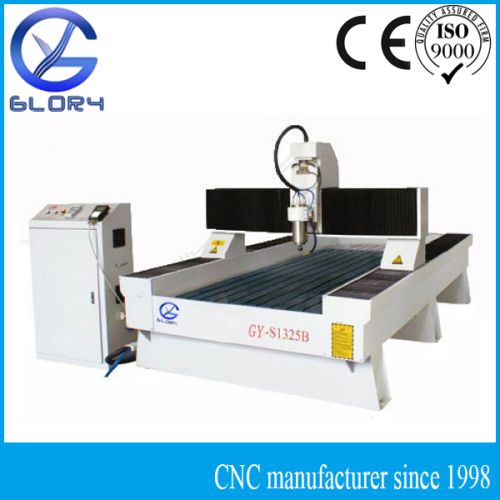

Marble Engraving CNC Machine

We are offering marble engraving cnc machine,
highlight:
this machine is specially used for engrave stone materials. It can engrave word and various graphic on the stones. Also, it can be used for timber, density board and other non-metallic material and light metals.
Key features:
1. Seamless steel lathe bed
2. World top brands for main parts
3. Water tank and automatic water cooling system for cutters
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Servo motors
7. Manual oil-injection system
8. Dsp operating system
9. Three axis is equipped with dust-proof cover
10. High soft electric cables
11. French schneider for small electric parts
ideal for:
1. Timber, foam, plastic, mdf, soft metals, acrylic
2. Granite, bluestone, marble, grit stone, ceramic tile, soapstone, etc.
Processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Standard sizes:
900*1500mm
1200*2400mm
1300*2500mm
1500*3000mm
2000*3000mm
3000*4000mm
etc
specification gy-b1325b
working area
(x axis) 1300mm
working area
(y axis) 2500mm
clearance (z axis) 220mm
machine dimension 1340*2940mm
spindle 4.5kw
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) germany ball screw
drive motors stepper motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum idling speed 30mmin
resolution 0.05mm
table top aluminum t-slot table protected with pvc
controller dsp handle
power requirements 3-phase 380v50hz
weight approx 2000kg
custom sizes and upgrades for the components are available on request.
