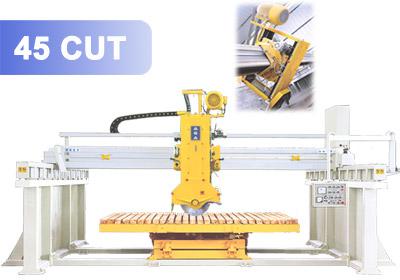

Marble Granite Machine

We are offering marble granite machine. Stone bridge saw for processing marble granite stones.
It is applicable on cutting and trimming slab, countertop, vanity, steps, etc.
this bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation.
All the operations are achieved from the touch screen panel.
the saw is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85 for easy load of big slabs and also turns 90360 degree to change the cutting direction.
feature
1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on plc system.
4. Precise movements on x, y, z axis ensuring cutting accuracy +-0.2mm
5. Electric parts from japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.
stone bridge saw specification
model
hq400
hq600
hq700
blade size
φ300-φ450 mm
φ300-φ600 mm
φ300 - φ700 mm
blade tilting
na
na
0°- 45°
table size (l×w)
3200×2000 mm 126”×79”
table rotation
0°- 90° 360°
0°- 360°
table tilt
0°- 85°
max. Cut size
3200×2000 mm 126”×79”
spindle motor
15 kw 20hp
15 kw 20hp
18.5 kw 25hp
size (l×w×h)
6×4.8×2.9 m
6×4.8×3 m
6×5.7×3.5 m
weight
6,300 kg
6,500 kg
7,500 kg
