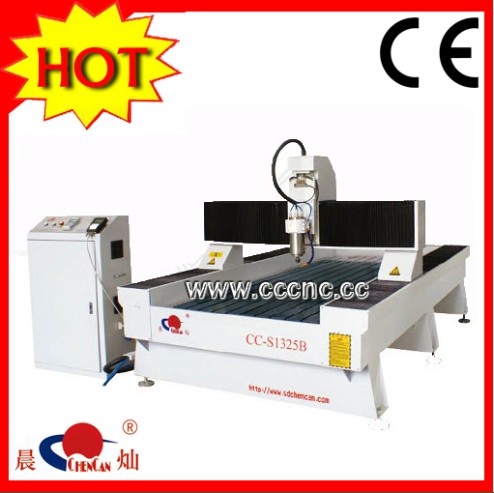

Marble Working CNC Router

Marble cnc router
model: cc-s1325b
features:
1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (vsr) to relief residual stress. The stability is excellent, not easy to be deformed.
2. Three axes adopt hiwin high precision square guide rail; x and y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; z axis adopts germany-made ball screw, with high precision and longevity.
3. Well compatibility: cad/cam designing software e.g. Type 3/artcam/castmate/wentai etc.
4. Has the function of re-carving after break point and power failure.
5. Has the function of forecasting process time.
6. Adopting advanced dsp system with usb interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
7. The machine has water tank and automatic water cooling system for cutters.
8. Waterproof and dustproof design for the machine protects the transmission parts from broken.
applicable industries:
stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.
metal working: nonferrous metals like aluminum, brass and etc.
glass working: various glass.
Technical parameter:
description parameter
x,y working area 1300*2500mm
z working area 150mm( 200mm optional)
table size 1440*3040mm
resolution 0.05mm
lathe structure seamless welded steel structure
x,y structure rack and pinion transmission, hiwin square guide rail
z structure germany-made ball screw, hiwin square guide rail
max. Idling speed 30m/min
spindle motor power 3.0kw
spindle rotate speed 0-24000r/min
working voltage ac380v/50hz(optional:220v)
working mode stepper
driver yako
command g code(hpgl,u00,mmg,plt)
operating system dsp
interface usb
diameter of cutter φ3.175-φ12.7
cooling mode water-cooling
dust-collect function yes
work-holding by clamp
net weight 2000kg
