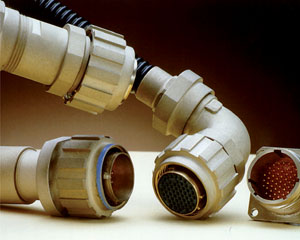

Marine Connectors

D38999 Series 1, conform to BS 9522-F0034, Nickel Aluminium Bronze with Anti-Glare finish, Rigid PlasticSilicone Rubber Insert, -65°C to + 200°C, 3 to 24amps, 3 to 128 contacts.
3-Start, High Density Screw Coupling Connector.
Mk38. The Mk38 system of connectors conform to BS9522-F0034 and can withstand the toughest conditions found in the military ground and marine equipment fields.
The range features a high density 100% scoop proof design with a coupling mechanism featuring a quick start thread with an anti-vibration device within a course ribbed nut. This provides positive metal to metal bottoming between connector halves, resulting in a typical screening performance of 75 dB at 100MHz and 65dB at 1000MHz.
MK38 connectors are available in shell sizes accommodating from 3 to 128 contacts in a comprehensive range of platforms compatible with MIL-C-38999 Series 1.
Crimp rear insertion, rear release contacts conform to MIL-C-39029.
The connector range is available with a full complement of sealed outlets and accessories.
SPECIFICATIONS
STANDARD MATERIALS & FINISHES
Shell: Nickel aluminium bronze with antiglare finish.
Insulators: High grade plasticsilicone rubber.
Contacts: Copper alloy, gold plated.
MECHANICAL FEATURES
Coupling: Quick start threaded with audible anti-vibration feature.
Polarisation: 5 KeyKeyway.
Contact type: Crimp removable.
Contact Arrangements: 3 to 128 contacts.
ELECTRICAL DATA
Maximum contact Current Rating: 3 to 24 amps.
Voltage Rating: Working AC or DC peak between 550V and 1250V r.m.s.
