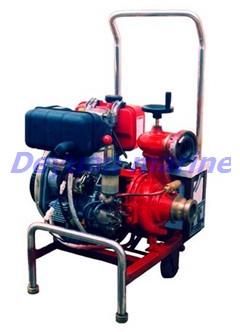

Marine Diesel Emergency Fire Pump, Brand Name : deyuan

We are offering marine diesel emergency fire pump.
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.
Product standard:CWY-type marine diesel emergency fire pump is developed in accordance with relevant provisions of the rules and regulations for the Construction of sea-going steal ships-2009,issued by China Classification society (CCS),and the International Convention on the safety of Life at sea.
Application:It is mainly applied in emergency fire protection for vessels,and additionally,in industrial and mining enterprises,ports and docks,warehouse or freight yard etc.
Product features: The pump integrates widely acclaimed features such as light weight,small size,flexibility in moving,rapid starting,rapid discharge,large capacity of fuel tank,anti-corrosion,reliability and ease of maintenance etc.
When the diameter is between Ф50 to Ф65,the pump set may be started by manual or electrically started.The diesel engine may be vertical,single-cylinder,4-stroke and air cooled.
When the diameter is between Ф80 to Ф100,the pump set may be started by spring starter or electrically started.The diesel engine may be verticql,multi-cylinder,4 stroke and water cooled.The outlet may be deployed as required for air cooling.
Portable Sliding vane pump priming
Type Capacity (m3/h) Head(m) Speed
(r/min) Suction head
m Time of discharge (s)
65CWY-30 25 30 3600 6~7 ≤35
65CWY-40 30 40 3600 6~7 ≤35
Type Diesel engine Weight
kg Diameter of discharge
mm
Type Power( kg)
65CWY-30 KM186F 5.7 98/83 65/50
65 CWY-40 KM186F 5.7 100/85 65/50
Self-priming pump
Type Capacity
(m3/h) Head
(m) Speed
(r/min) Suction head
(m) Time
(s) Diesel engine Suction diameter
（mm) Weight
(kg)
Type Power
(kw)
50CWY-43 25.5 43 3600 6 ≤150 KM
186F 5.7 50/50 110
65CWY-40 30 40 3600 6 ≤150 KM
186F 5.7 65/65 110
80CWF-60 50 60 2950 5 ≤150 CZ380Q 20.5 80/80 410
100CWY-75 72 75 1500 5 ≤150 2135Aca 31.5 100/100
&&&&
