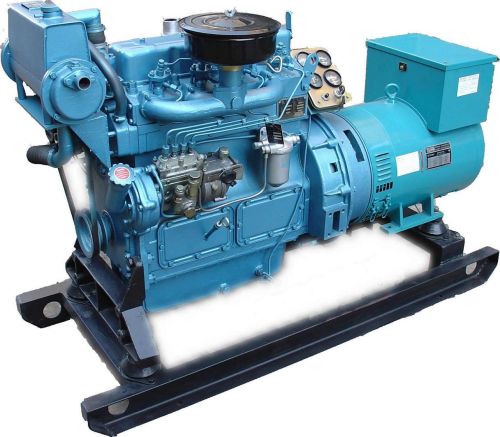

Marine Diesel Gensets

Sfm-rw series marine use diesel engine is with small size,low oil consumption, easy starting,low noise and large output power. Marathon、landian、stamford、siemens brand serial marine use generator is used.pole is insulative,and defend grade is ip22. Performance is advabced and operation is reliable. Monitor can be allocated ingenerating set. Parallel module,self-drive function and four-protection function adopted.ccs,zc,bv, shipping inspection is up to users.
set type rated output motor maximum fuel consumption size and weight
capacity (kva) power (kw) current (a) type power (kw) diesel oil lubrication oil l*w*h (mm) net weight(kg)
sfm-rw12gf 15 12 21.6 395adc 19.9 ≤219 ≤1.08 1260*600*960 760
sfm-rw12gf 15 12 21.6 395adc 14.7 ≤217 ≤1.08 1160*600*960 720
sfm-rw15gf 18.75 15 27 395adc 19.9 ≤219 ≤1.12 1260*600*960 760
sfm-rw15gf 18.75 15 27 3100ad 22 ≤216 ≤1.14 1260*600*960 760
sfm-rw15gf 18.75 15 27 495d4 26 ≤224 ≤1.16 1460*600*960 820
sfm-rw20gf 25 20 36 495d4 26 ≤224 ≤1.16 1460*600*960 820
sfm-rw20gf 25 20 36 495adc 25.5 ≤216 ≤1.12 1500*600*960 820
sfm-rw24gf 30 24 43.2 495azdc 32 ≤219 ≤1.18 1500*600*960 960
sfm-rw24gf 30 24 43.2 k4100d4 31 ≤223 ≤1.12 1550*600*960 980
sfm-rw30gf 37.5 30 54.1 r4105d4 40 ≤218 ≤1.18 1600*720*1060 1030
sfm-rw40gf 50 40 72 r4105zd4 56 ≤221 ≤1.2 1600*720*1060 1030
sfm-rw50gf 62.5 50 90 r6105d5 75 ≤218 ≤1.22 2380*720*1060 1480
sfm-rw64gf 80 64 115.2 r6105zd4 75 ≤218 ≤1.22 2380*720*1260 1650
sfm-rw75gf 93.75 75 135 r6105zld4 100 ≤218 ≤1.2 2580*720*1260 1800
sfm-rw90gf 112 90 162 r6105azld4 132 ≤218 ≤1.2 2864*900*1453 2400
the frequency of generator sets is 50hz in lists (according to user requirements, can also provide 60hz), the power factor is 0.8 (lag), rated voltage 400v230v, brushless, three-phase four wire.
