Marine Exhaust Gas Boiler, Brand Name : deyuan

We are offering Marine Exhaust Gas Boiler.
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details.

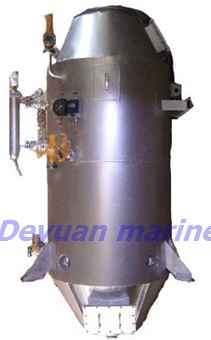

EGB-series exhaust-gas boiler with a boiler shell can be settled vertically ,this series boiler has a natural circulation structure; it is a perfect energy-saving set to make use of exhaust heat of discharged gas from ship diesel. It owns smaller cubage ,lighter weight, higher exhaust-heat utilization efficiency because it uses the effective single-head screw tube as its heat-transferring smoke tube.
Heating surface Working pressure Main engine power
recommendation Dimension(mm) Boiler weight
m2 Mpa kw H D D1 C kg
35 0.7 1100-1600 3320 1020 400 750 3000
55 0.7 1800-2400 3520 1220 500 850 3800
70 0.7 2300-3000 3520 1320 500 900 4400
85 0.7 3000-3800 3520 1450 600 1000 5600
100 0.7 3500-4500 3520 1550 600 1050 7000
120 0.7 4500-5500 3600 1920 9000
150 0.7 5500-6500 3700 2020 11000
180 0.7 6500-8000 3700 2220 13500
More types can be offer,pls contact us for more details
&&&&&
