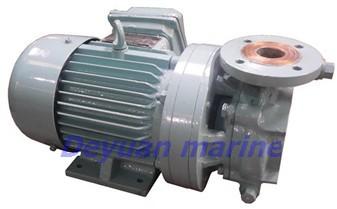

Marine Horizontal Crushing Pump, Brand Name : deyuan

We are offering Marine Horizontal Crushing Pump.
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.
CWF series marine horizontal crushing pump is the open impeller centrifugal discharge pump.Which is used to pulverized and transfer the soft foul in the anitary sewage under 85 degrees,such as sheet,food draft,dirt dregs,sluge dejecta and so on.The maxium diameter of solid particle after circular pulverizing is within 5mm.It is also applicable to pulverize the coagulate of heavy oil under low temperature.In order to facilitate injection.
The pump rotates clockwise viewed from pump inlet.
Type (50HZ,3phase,380V) main technical parameter Motor power(kw)
Capacity
(m3/h) Head
(m) Speed
(r/min) NPSHR
(m) Shaft power(kw)
0.5CWF-10 5 10 2900 3.5 0.65 1.1
0.5CWF-15 5 15 2900 1.5
0.5CWF-15A 5 13 2900 1.1
0.5CWF-20 5 20 2900 1.5
0.5CWF-20A 5 18 2900 1.5
0.5CWF-25 5 25 2900 1.1
0.5CWF-30 5 30 2900 1.5
1CWF-10 10 10 2900 1.5
1CWF-15 10 15 2900 2.2
1CWF-20 10 20 2900 3
1CWF-25 10 25 2900 3.8 2.3 4
1CWF-30 10 30 2900 5.5
0.5CWF1-10 6 14.5 3500
0.5CWF1-15 6 21.5 3500
0.5CWF1-15A 6 18.5 3500
0.5CWF1-20 6 29 3500
0.5CWF1-20A 6 26 3500
0.5CWF1-25 6 36 3500
0.5CWF1-30 6 43 3500
More types can be offered,pls contact us for more details.
