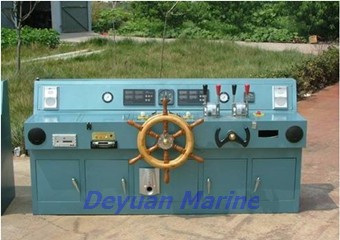

Contact SupplierWe are offering marine hydraulic steering gear
1)suitable for:
containers, tankers, ferries, general cargo ships, passage ships, dredgers and any other vessels that need more steering torque.
(2)main tech:
max working torque: 15 kn.m — 250 kn.m
max. Mech. Rudder angle: ± 45 degree
time of rudder movement: ≤28 s
rudder stock diameter: 300mm — 900 mm
working pressure: 13 mpa — 20 mpa
design pressure: 16 mpa — 24 mpa
(3)scope of delivery:
marine steering gear with hydraulic cylinders
electro-hydraulic power station with oil pumps
oil tanks
start motors
on requests, the full range of parts will be delivered.
(kn.m)
nominal torque turning
angle
(°) (s)
turning time (mpa)
max working oil pressure gear pumpmotor (mm)
rudder tiller radius (mm)
diameter
of radius
type no output
(kw)
10 ±35 ≤2820 6.5 cbn-316 2 1.1 240 75-130
16 ±35 ≤2820 10.2 cbn-316 2 1.1 240 75-130
20 ±35 ≤2820 12 cbn-320 2 2.2 240 75-130
25 ±35 ≤2820 10.9 cbn-320 2 2.2 290 75-150
30 ±35 ≤2820 9.8 cbn-320 2 3 290 75-150
40 ±35 ≤2820 10.3 cbn-420 2 3 360 1160
50 ±35 ≤2820 12.5 cbn-420 2 4 480 170
63 ±35 ≤2820 8.4 cbn-420 2 4 480 175
