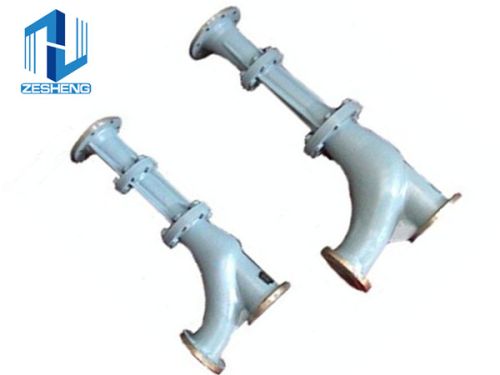

Marine Injection Pump

General description
the pump suction flange axis perpendicular to the pump body axis,convenient installation. Has a self-priming performance, can work continuously steadily. No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc。
structural specifications
performance prarmeter
type capacity delivery suc’head working pressure water consumption weight
m3h m m mpa m3h kg
cp5-0.7 5 8 4 0.7 3.6 14
cp5-0.3 5 5 4 0.3 6 17.2
cp10-0.7 10 8 4 0.7 7 20
cp10-0.7k 10 8 4 0.7 7 20
cp10-0.3 10 5 4 0.3 12 20.5
cp15-0.5 15 11 7 0.5 24 26
cp15-0.3 15 5 4 0.3 19 25.8
cp20-0.7 20 8 4 0.7 14 28.5
cp20-0.7k 20 8 4 0.7 14 28.5
cp20-0.3 20 5 4 0.3 24 26
cp30-0.7 30 8 4 0.7 21 32
cp30-0.3 30 5 4 0.3 36 50
cp40-0.3 40 5 4 0.3 47 49.5
cp50-0.7 50 8 4 0.7 35 48
cp50-0.3 50 6 3 0.3 35 56
cp100-0.7 100 9 2 0.7 60 71.5
cp100-0.3 100 6 3 0.3 110 73
cp200-0.7 200 9 2 0.7 120
