Marine Offshore Moorfast Anchor

We are offering marine offshore moorfast anchor.
1.moorfast anchor; mooring and offshore anchor2.weight: 1000-70000kg3.certificate:ccs,dnv,gl,bv,abs4.material:steel
moorfast anchor

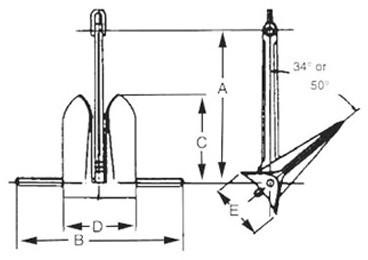

anchor weight(kg) a b c d e proof test(kn)
1000 61 75 37 25 19 30000
3000 88 109 54 37 27 72500
6000 101 143 61 42 31 121300
8000 122 153 75 51 38 145000
10000 131 157 80 55 41 165600
12000 139 167 85 58 43 184700
14000 147 177 90 61 45 205000
16000 153 187 94 64 48 222700
20000 164 196 102 69 51 249400
30000 189 217 118 79 59 319400
40000 215 248 127 86 63 386000
50000 222 257 132 89 66 448300
60000 232 271 140 95 70 506200
70000 244 274 147 100 73 561400
