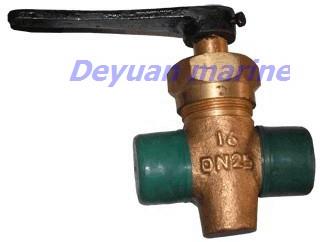

Marine Plug Valve

China deyuan marine fitting co.,ltd are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with gb standard,jis standard,din standard,api、ansi,bs standard etc.pls contact us for more details.
nominal pressure(mpa) nominal diameter(mm) applicable medium
0.1 10~25 sea water,fresh water,lubricanting oil,fuel oil
1.0 32
1.6 20,25
2.5 6~15
pn
(mpa) dn
mm) structure dimension thread connection
l l1 h1 h d d1 d2 l l1 l2
2.5 6 60 25 20 60 m22*1.5 19.8 10 14 3 3
10 69 30 27 72 m27*1.5 24.8 14 16 3 3
15 87 41 37 92 m36*2 33.0 22 22 5 3
1.6 20 92 43 40 99 m36*2 33.0 24 20 3 2
25 103 50 42 108 m42*2 39.0 29 21 3 2
1.0 32 119 56 49 120 m48*2 45.0 36 21 3 2
the above details are a type dimension,more types can be offered,pls contact us for more details
