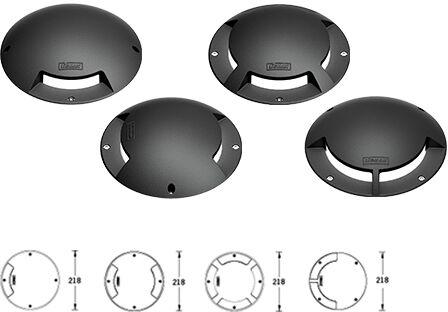

Mask Inground Luminaires

Inground luminaires for illuminating the ground and horizontal surfaces with light distribution options from one, two or four sectors. Designed for use in shopping, pedestrian & park areas. Main characteristics are low glare. These products are suitable for general public areas that encounter high pressure loads from automobiles.
The luminaire rated as CLASS I with integral driver. Colour temperature 2700K, 3000K and 4000K, LED CRI >80 and life time 50,000 Hours.
Fasteners in grade 316 stainless steel. Durable silicone rubber gasket and clear glass lens. Body and frame constructed in low copper content die-cast aluminum with high corrosion resistance. Power is provided through a single PG13.5 watertight cable gland. Two PG13.5 cable glands are available upon request. Recessing box in high density polyethylene.
To ensure efficient drainage, gravel must be used to a depth of 450mm. and width of 300mm. beneath the housing, and should also be placed around luminaire. Pressure load 1000Kg. is transferred by the housing to the foundation. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 kmh.
