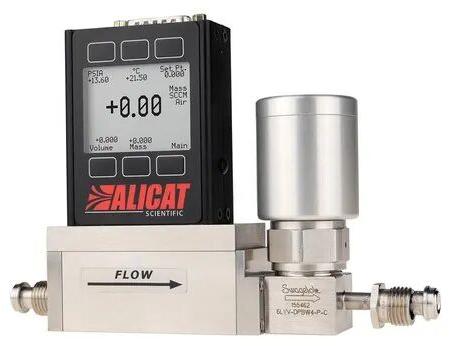

Mass Flow Controller

₹ 90,000 / Piece

Product Details

Repeatability+-(0.2% of reading + 0.02% of full scale)
Typical Control Response TimeAs fast as 30 ms, flow rate dependent, user adjustable
Typical Indication Response Time10 ms, flow rate dependent
Temperature Accuracy+-0.75 DegreeC
Analog Data Update Rate1 kHz
High Accuracy Option+-0.4% of reading and +-0.2% of full scale
Typical Warm-Up Time1 sec
Maximum Operating Pressure175 PSIA
Ingress ProtectionIP40
Analog I/O Options4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC
Steady State Control Range0.01-100% of full scale
BrandAlicate
Pressure Sensitivity+-(0.08% of reading + 0.02% of full scale) per atm from calibration conditions
Totalizer Volume Uncertaint0.5% of reading in additional uncertainty
Digital I/O OptionsRS-232 Serial by default
Display Update Rate10 Hz
Operating Temperature Range10-60 DegreeC
Humidity Range95%
Operating Pressure Full Scale160 PSIA
Sensor Response Time1ms
Digital Data Update Rate40 Hz at 19200 baud
Minimum Operating Pressure11.5 PSIA
Pressure Accuracy below 1 atm+-0.07 PSIA
Temperature SensitivityMass flow zero and span shift: 0.02% of full scale per DegreeC from 25 DegreeC
