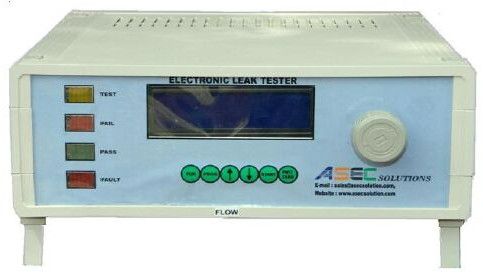

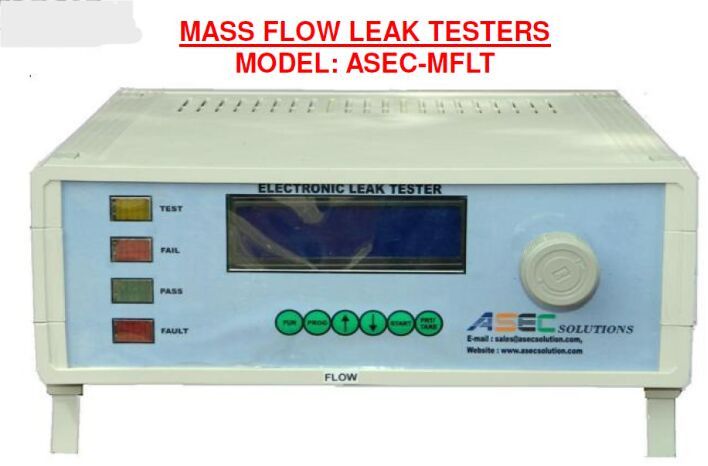

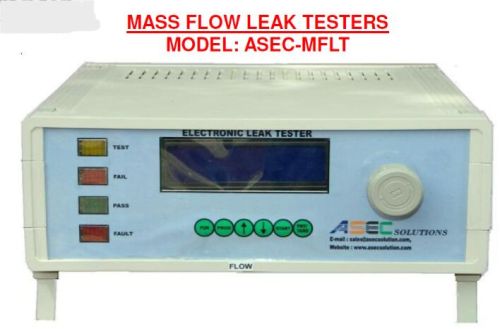

Automatic ASEC MAKE Mass Flow Leak Testers, Color : Grey, Light Grey

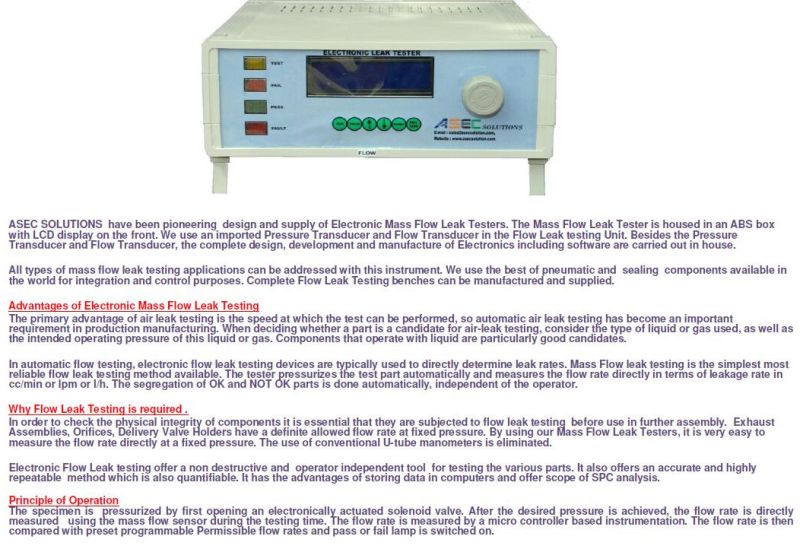

Advantages of Electronic Mass Flow Leak Testing

The primary advantage of air leak testing is the speed at which the test can be performed, so automatic air leak testing has become an important

requirement in production manufacturing. When deciding whether a part is a candidate for air-leak testing, consider the type of liquid or gas used, as well as

the intended operating pressure of this liquid or gas. Components that operate with liquid are particularly good candidates.

In automatic flow testing, electronic flow leak testing devices are typically used to directly determine leak rates. Mass Flow leak testing is the simplest most

reliable flow leak testing method available. The tester pressurizes the test part automatically and measures the flow rate directly in terms of leakage rate in

cc/min or lpm or l/h. The segregation of OK and NOT OK parts is done automatically, independent of the operator.

Why Flow Leak Testing is required .

In order to check the physical integrity of components it is essential that they are subjected to flow leak testing before use in further assembly. Exhaust

Assemblies, Orifices, Delivery Valve Holders have a definite allowed flow rate at fixed pressure. By using our Mass Flow Leak Testers, it is very easy to

measure the flow rate directly at a fixed pressure. The use of conventional U-tube manometers is eliminated.

Electronic Flow Leak testing offer a non destructive and operator independent tool for testing the various parts. It also offers an accurate and highly

repeatable method which is also quantifiable. It has the advantages of storing data in computers and offer scope of SPC analysis.

Principle of Operation

The specimen is pressurized by first opening an electronically actuated solenoid valve. After the desired pressure is achieved, the flow rate is directly

measured using the mass flow sensor during the testing time. The flow rate is measured by a micro controller based instrumentation. The flow rate is then

compared with preset programmable Permissible flow rates and pass or fail lamp is switched on.
