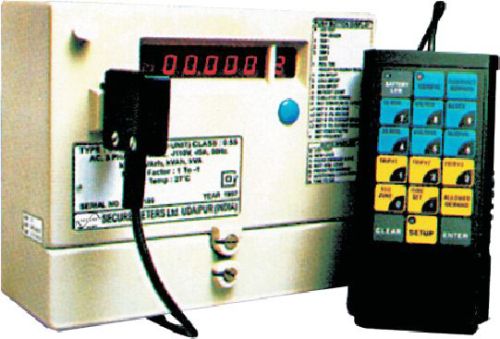

Maximum Demand Controller

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We take pride in introducing ourselves as one of the leading Suppliers of Maximum Demand Controller in Mumbai. Maximum Demand Controller is specifically designed for industries to keep a check on....

View More Details

Send Enquiry

Product Details

We take pride in introducing ourselves as one of the leading Suppliers of Maximum Demand Controller in Mumbai. Maximum Demand Controller is specifically designed for industries to keep a check on their maximum demand. Maximum Demand Controller gives an alarm when demand approaches a preset value and also switches off non-essential loads in a logical sequence. This predictive Maximum Demand Controller (MDC) allows stage wise load restoration to maximize the use of a sanctioned load. Maximum Demand Controller is most suitable for the demand control of industrial consumers, HT consumers and commercial establishments.
Features of Maximum Demand Controller

Predictive demand control to forewarn, take corrective measures and check maximum demand crossovers
Multi-level priority based automatic load control mechanism to disconnect low priority loads in phased manner
Optimized load disconnection time.
Online load planning by continuously indicating loads that can be added or need to be disconnected (within safe operating limits).
Check meter with accuracy class 1.0s and 0.5s
Auto and push button display
A compact user friendly hand-held programmer for field usage
Two modes of programming
- Configuration Mode - user can program Maximum Demand Controller for contract demand, DIP, demand unit and basis of MD calculation.
- Setup Mode - user can set priority wise trip load value setting, allowed demand limit setting (TOU) and time setting in Maximum Demand Controller.
Control Outputs for alarm and trip applications âï¿½ï¿½ it provides 4 control outputs, in the form of potential free contacts

Technical Specifications

lectrical	C3T	C3M	C3V
Connection type	CT operated	CT/PT operated	CT/PT operated
Wiring configuration	3 phase 4 wire	3 phase 4 wire	3 phase 3 wire
Voltage range	240 V	63.5 V	110 V
Main frequency	50 Hz ±5%	50 Hz ±5%	50 Hz ±5%
Current range	1 - 1.2 A, 5 - 6 A	1 - 1.2 A, 5 - 6 A	1 - 1.2 A, 5 - 6 A
Accuracy Class	1.0 and 0.5s Class	1.0 and 0.5s	Class 1.0 and 0.5s
Approvals
Standards compliance	IS14697, IS13779, IEC62052-11, IEC62053-21, IEC62053-22, CBIP 88
Mechanical - All variants
Dimensions (WxHxD) MDC unit Programmer unit	132 x 164 x 59.5 mm 60 x 120 x 25 mm
Enclosure	Engineering plastic
Terminals	Cage clamp type
Programmer Battery	9 V DC, PP3 size, alkaline or rechargeable
Control Outputs	1 Alarm, 3 load control
Contacts Control outputs Contact ratings	0 - 240 V, 50 W 2 A max.
