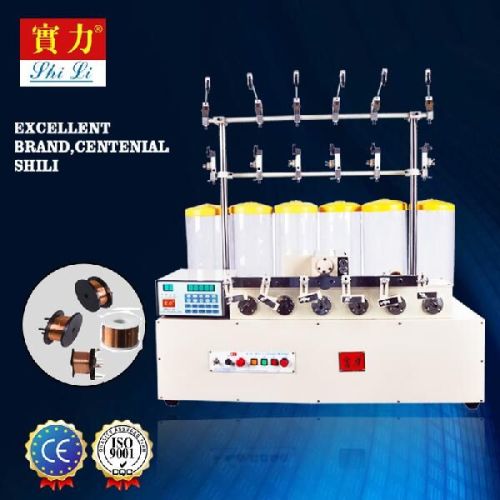

MCSH216-30 CNC Winding Machine, Brand Name : SHILI

We are offering cnc winding machine.
Machine feature:
the machine uses 16 control chip, the whole machine selection of high quality steel, high quality bearings and other accessories, life expectancy is much higher than other similar products, the machine is durable.
Function and feature:
1.winding uses stepping motor, potentiometer control, variable speed, high speed.
2.with automatic reset function,easy to measure the winder start and stop point.
3.every layer start or stop control by yourself.two side can set stop, parameter setting is simple, convenient and quickly operation.
Application range:
small transformers, relays, power coil, communications coil , others coil.
Specifications:
spindle number 6
wire size range 0.04-0.45mm
loop diameter 65mm
winder width 65mm
spindle pitch 85mm
max speed h:4300 turnmin, l:2150turnmin
spindle motor 370w
winder motor stepping motor
input power 220v 50hz60hz
machine size 930*510*480mm
pocking size 460*1040*650mm
ng weight 60kg84kg
