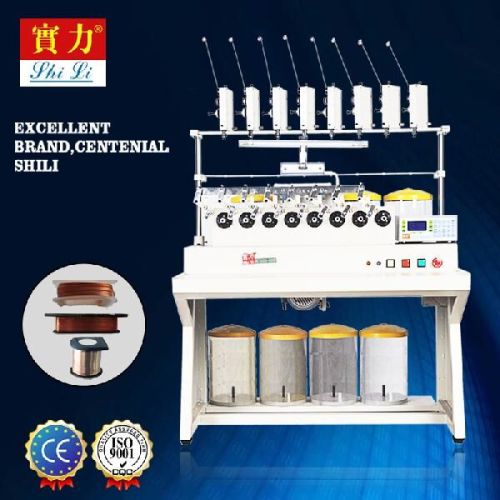

Automatic MCSH28-80 Winding Machine, Brand Name : SHILI

Machine feature：
this machine is to deal with the small coil products and transformer industry demand of high production to study and production of high speed winding machine, with high speed, low sound, winding stable. Meanwhile winding 8 group products, and time efficient. This machine design of 32 bit controller chip, it’ll be faster and higher reliability.in chinese and english display,easy to operation,winding data retention after power failure, not to discarded products。all the parts for this machine are imported prats,such as:japan bearing (nsk、ntn),japan bando belt ，japan gates belt ，taiwan ball screw (tbi)，taiwan transducers and so on.
Function：
①using the lcd latest synchronization with the coupling cable controller.
②with self detection, including setting error, speed tracking and velocity calibration optional lifting speed of main spindle
③to start the operation speed of the spindle motor to climb time can decide for ourselves, to guarantee the product quality of winding.
Application range：
ee transformer,ei transformer,stepping motor,relay,coil class,auto abs,switch power transformer and special products.
Specifications：
spindle number 8
wire size range 0.03-0.2mm
loop diameter 56mm
max wire distance 9.99mm
winder width 60mm
spindle pitch 70mm
max speed 0-10000turnmin
spindle motor phase motor+ac drive
winder motor stepping motor
input power 220v 50hz60hz
machine size 1080×800×1100mm
package size 1160×890×1030mm
net weight 167kg
gross weight 227kg
