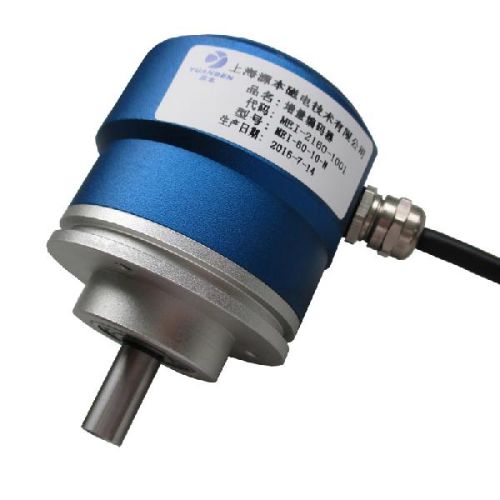

MEA-60 Absolute Rotary Encoder

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Far-famed for the excellent MEA-60 Absolute Rotary Encoder, we are a notable supplier thriving on the customers' trust for a long time now. To stock our product for wholesale distribution, we have a state-of-the-art storage facility equipped with the latest inventory control management system. It enables us to meet bulk or retail requirements with ease.

Description

A non-contact high performance off-axis absolute rotary encoder designed for integration into space-constrained applications. Hollow ring, true absolute functionality, high speed operation and high degree of IP protection make this encoder suitable for many applications.
The magnetic encoder system consists of an axially magnetized ring and a read-head.
The encoders come in CAN, SSI,SPI, I2C, PWM, asynchronous serial RS422/RS485 and analogue current or voltage output variants and offer a range of binary resolutions to 12 bits per revolution or decimal resolutions to 4096 counts per revolution.
The encoder operates from -40^oC to +85^oC and is resistant to shock and vibrations.
The magnetic encoder system is suitable for usage in industrial and medical applications.
Typical application is a robotic arm joint with a cable feed through the ring or a precision gearbox where the ring is attached onto the main transmission shaft. Custom design service for OEM integration is also available.

Technical Specification

System data
Reading type	Axial reading
Resolution	12 bits
Maximum speed	>10,000 rpm
System accuracy	±100 mdeg (±360 arcsec)
Repeatability	Better than unit of resolution
Hysteresis	0 μs
Electrical data
Supply voltage	5 V ± 10 %, other voltages on request
Set-up time	After switch-on ≤ 5 ms After wake-up ≤ 0.3 ms
Current draw	Operation Max. 150 mA Sleep mode < 1 mA
Mechanical data
Available ring sizes (outer diameter)	49 mm
Material type	Ring EN 1.4005 / AISI416 or EN 1.4104 / AISI430F with vulcanised HNBR rubber
Cable	Ø4.2 ± 0.2 mm, PUR high flexible cable, drag-chain compatible, double-shielded 8 × 0.05 mm2; durability: 20 million cycles at 20 mm bend radius
Environmental data
Temperature	Operating -40 °C to +85 °C Storage -40 °C to +110 °C
Vibration – read head only (55 Hz to 2000 Hz)	300 m/s2 (IEC 60068-2-6)
Shock – read head only (11 ms)	300 m/s2 (IEC 60068-2-27)
Protection	IP65

Details

CAN bus
Standard	J1939
Update rate	20 Hz
Resolution	12 bits
Latency	250 μs
Asynchronous serial RS422 RS485
Baud rate	4,800 bps,
Data format	8 bits, no party, 1 stop bit
Update rate	On demand or continuous
Resolution	12 bits
Latency	250 μs
PWM
Base frequency	180 Hz
Step duration	0.1110 μs
Update rate	180 Hz
Output resolution	12 bits per revolution
Latency	250 μs
SSI (optional CRC)
Maximum clock frequency	20 MHz
Update rate	4 kHz
Resolution	12 bits
Latency	250 μs to 500 μs
Timeout (monoflop time)	20 μs
SPI slave (chain possible, master mode optional) (available on request)
Maximum clock frequency	20 MHz
Update rate	4 kHz
Resolution	12 bits
Latency	250 μs to 500 μs
I2C / TWI slave (available on request)
Maximum clock frequency	400 kHz
Update rate	4 kHz
Resolution	12 bits
Latency	250 μs to 500 μs
Analogue current (available on request)
Current range	For AZ output 0 mA - 20 mA
For AF output	4 mA - 20 mA
Update rate	4 kHz
Output resolution	12-bit DAC
Latency	300 μs
Analogue voltage (available on request)
Voltage range	For VV output 0 V - 10 V (min. 12 V supply)
For VP output	10 % - 90 % of supply voltage
Update rate	4 kHz
Output resolution	12-bit DAC
Latency	300 μs

Electrical Connector

Colour	CAN bus	SSI	Asynchronous serial RS485	Asynchronous serial RS422	PWM
Inner shield	0 V (GND)	0 V (GND)	0 V (GND)	0 V (GND)	0 V (GND)
White	Sleep	Clock	Sleep	Sleep	Sleep
Brown		Clock
Grey	CANL	Sleep		TX data out
Red	5 V supply	5 V supply	5 V supply	5 V supply	5 V supply
Green		Data	RX/TX Data	RX data in
Yellow		Data	RX/TX Data	RX data in
Pink	CANH			TX data out	PWM out
Blue	0 V (GND)	0 V (GND)	0 V (GND)	0 V (GND)	0 V (GND)
