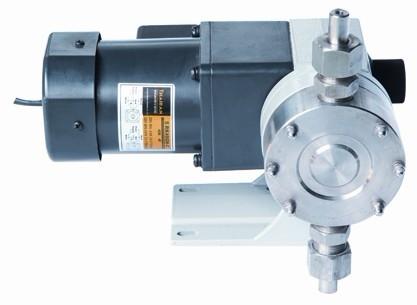

Mechanical Diaphragm Metering Pump, Brand Name : DEPAMU

We are offering mechanical diaphragm metering pump.
flow:10~2000l/h
pressure:0~1.0mpa
power:380v, 40w, 50hz
api standard
technological parameters:
flow rate: 10~ 2000 l/h.
pressure: 0~1.0 mpa.
adjustment mode: manual, electric, pneumatic, frequency conversation.
measuring accuracy: ± 1%.
motor power: 380v / 40w (or 60w) / 50hz (for your reference only)
fluid temperature: -45~450°c
allowed particle size: ≤ 0.01 mm
viscosity of fluid: 0.3~800 cst
head of pump: 1
diaphragm: 1
material:
worm wheel: tin bronze
worm: 40cr or 38crmoal
diaphragm: ptfe
pump head: pvc, cs, ss, ptfe, etc.
inlet & outlet part: pvc, cs, ss, ptfe, etc.
bearing: nsk japan, skf sweden
oil seal: nok japan
advantage:
1. Simple structure and beautiful appearance.
2. Vertical installation of motor avoid the leakage of lubrication oil and prevent the environmental pollution.
3. Patented integrated sleeve adjustable eccentric transmission mechanism.
4. High drive efficiency.
5. Strong carrying capacity with accurate flow rate.
6. The flow rate is adjustable with capability of 0-100% free adjustment.
7. Stable and reliable operation with low noise.
8. Convenient maintenance and long life service.
certificate:
dnv iso9001:2000
iso14001-2004
ohsas18001
ce
api
