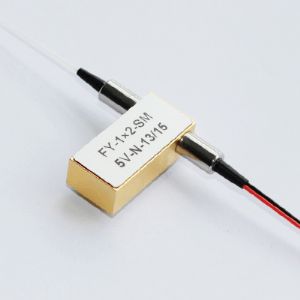

Mechanical Fiberoptic Switch

We are offering mechanical fiberoptic switch.flying optronics' ms series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The ms fiberoptic switches are true switching solution for optical networking applications.
features
unmatched low cost
low lnsertion loss
latching or non-latching
high channel lsolation
highly stable and reliable
epoxy-free optical path
applications
optical signal routing
optical network protection/restoration
configurable optical add/drop
transmitter and receiver protection
network test systems
lnstrumentation
performance specifications
parameter min typical max unit
operation wavelength range 1310±40 or/and 1550±40 nm
insertion loss 0.7 db
polarization dependent loss(pdl) 0.05 0.1 db
cross talk 55 db
return loss 55 db
repeatability ±0.03 db
switching time 10 ms
operating voltage 5.0 vdc
durability 107 cycles
optical power handing 800 mw
operating temperature -5 +75 ℃
storage temperature -40 +85 ℃
switch type latching or non-latching
fiber type corning smf-28e fiber
package dimension (l)46x(w)13.4x(h)11 mm
