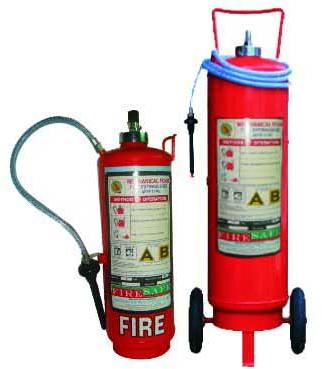

Mechanical Foam Fire Extinguisher

We are a leading Mechanical Foam Fire Extinguisher Manufacturer, based in Mumbai. The Mechanical Foam Type Fire Extinguisher manufactured by us follows the flame knockdown technique for spill fires involving flammable and volatile liquids like petrol, paints and alcohols. Our Mechanical Foam Type Fire Extinguisher forms a thick blanket of foam over the burning surface thereby cutting off the oxygen supply and smothering the fire. Characteristics :

• Uses flame knock down technique
• Immediately smothers fire
• Mechanical operation makes it easy to use
• Light weight

Widely used for :

• Flammable and volatile liquid
• Petrol
• Paints
• Alcohols

Specifications :Specifications9 ltrs50 LtrsManufacturerHindustan FireHindustan FireTrade MarkFire SafeFire SafeBodyMS IS 513MS IS 1079NeckringSeamless MSSeamless MSCapBrassGun MetalCapwasherRubberRubberNozzlePlasticPlasticHoseBraided PVCBraided PVCSnifter ValveBrassBrassSafety ClipSteelSteelCartridge60 Gms MS IS 4947300 Gms MS IS 4947Test Pressure30 kgf/cm330 kgf/cm3Anti-Corrosive TreatmentEpoxy Polyester Coating 50 micron (min)Epoxy Polyester Coating 50 micron (min)DimensionsThickness1.6mm3.15 mmDiameter175mm300 mmHeight585mm1130mmGross Weight (approx)14.3 kgs86 kgsFire Openings58 mm75 mmThread Length16 mm28 mmPerformanceDischarge Time25-60 sec60-180 secDischarge %9090Jet Length6 m10 m
